Atlantis

K0826/K0827

The Atlantis is a super heavy-duty rear-wheel drive power wheelchair engineered for bariatric users who need exceptional strength, comfort, and long-range performance. With a 600-pound weight capacity, high-torque in-line motors, an extra-wide captain seat, and up to 32 miles of range, it delivers dependable mobility for demanding everyday use.

Available colors:

Color swatches for the Merits Health Atlantis.

Find a Dealer

Download Flier

The Merits heavy-duty power wheelchair Atlantis right three-quarter view.

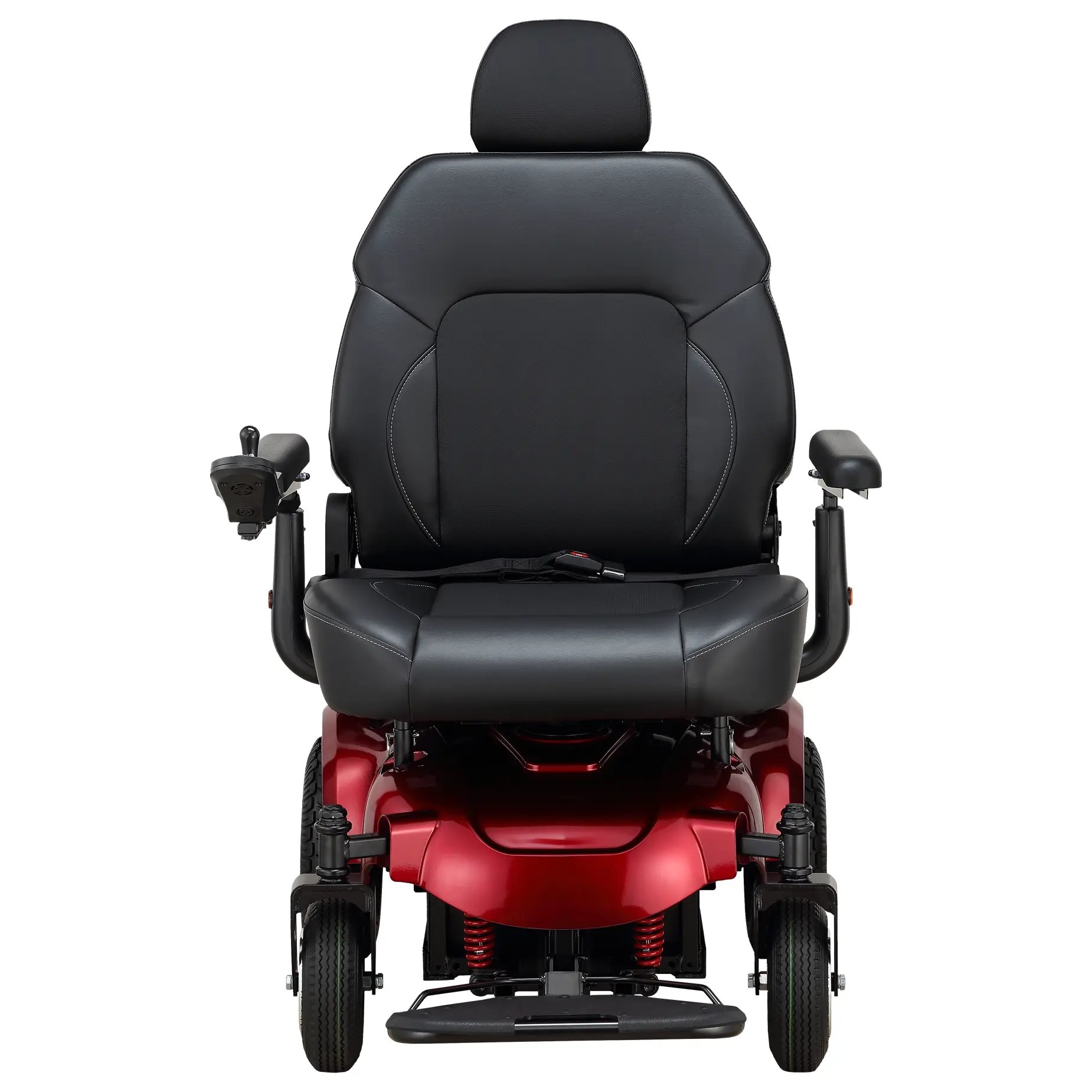

The Merits heavy-duty power wheelchair Atlantis front view.

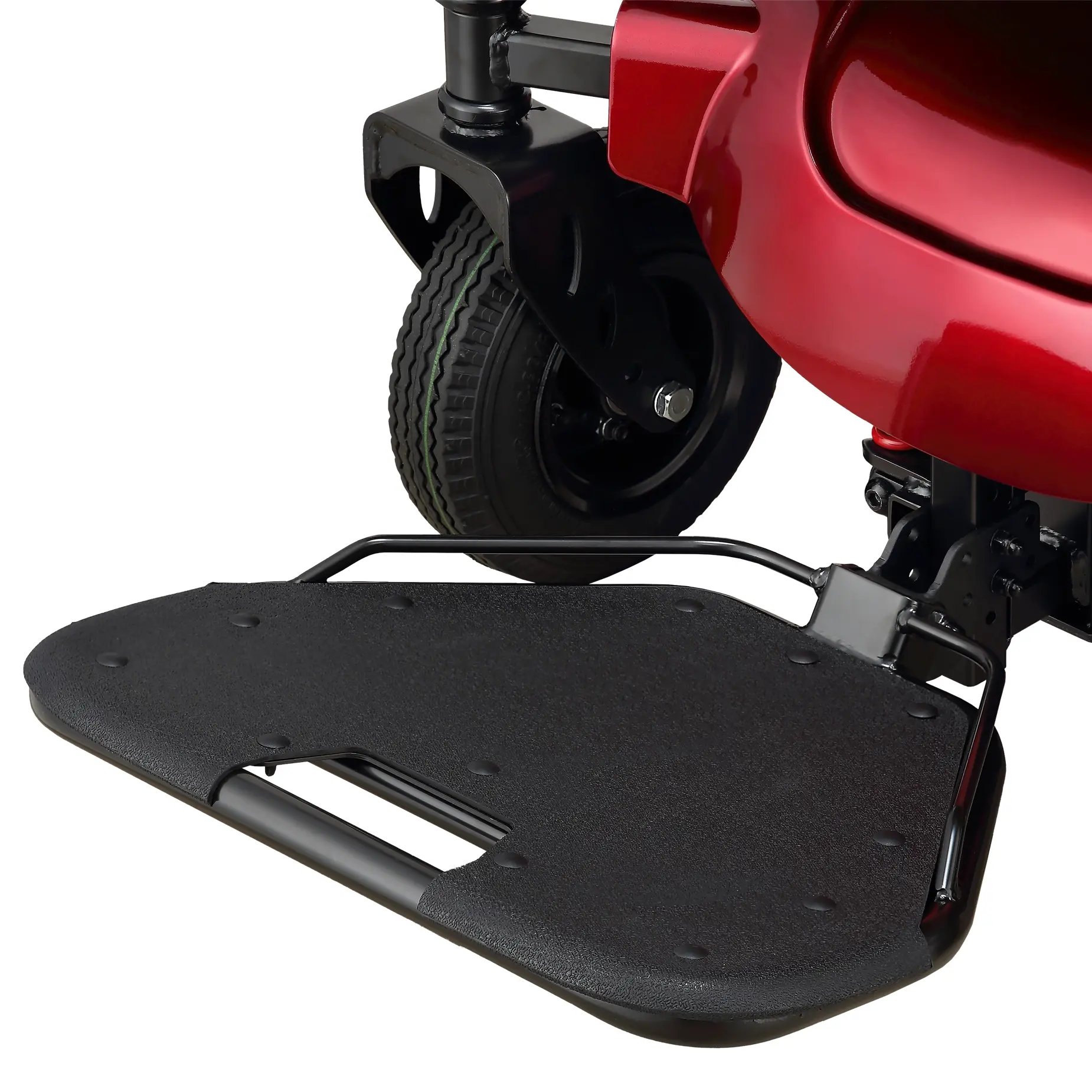

The Merits heavy-duty power wheelchair Atlantis footplate detail view.

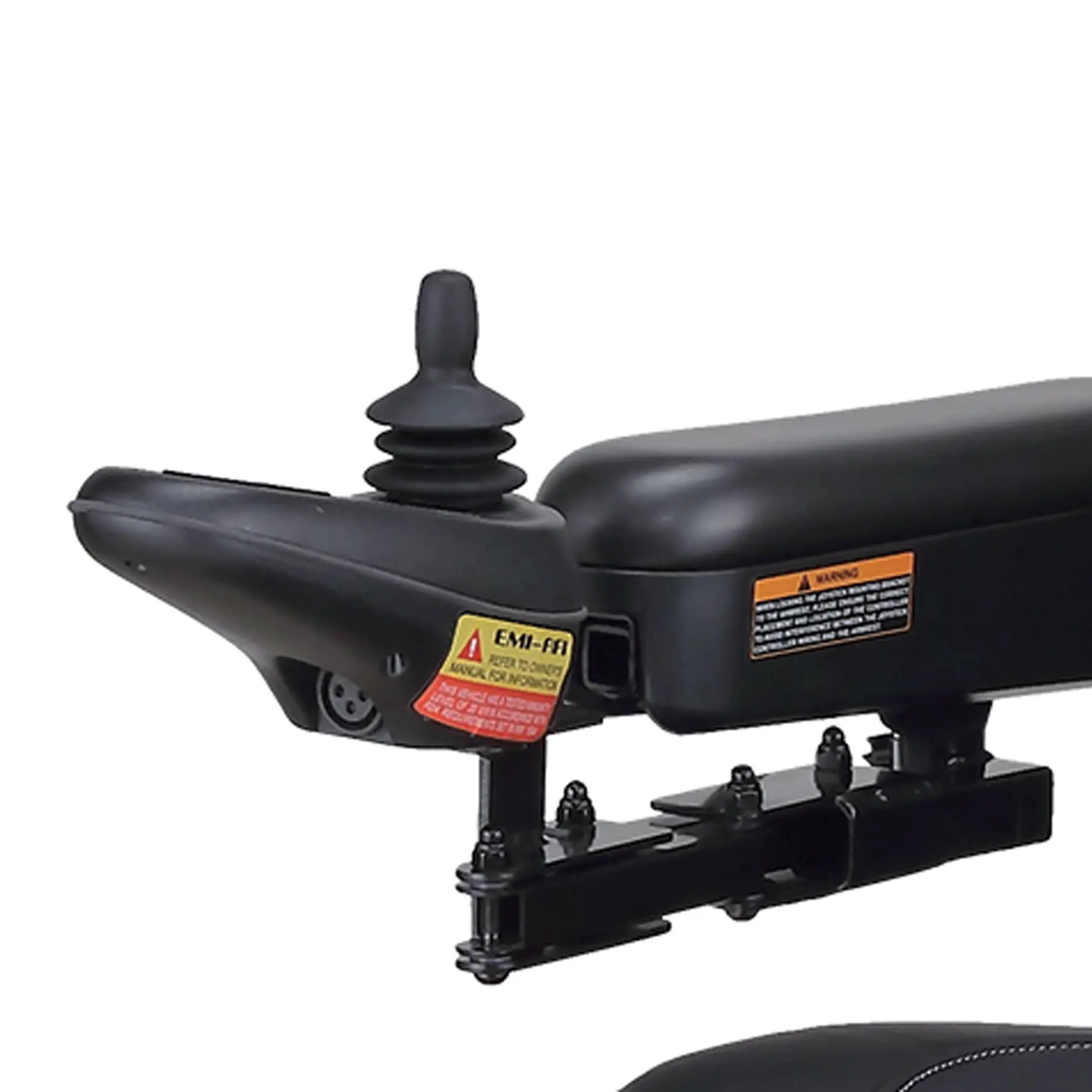

The Merits heavy-duty power wheelchair Atlantis control detail view.

Product Details

Purpose-built for bariatric users, the Atlantis combines exceptional strength with lasting comfort and dependable performance.

Its reinforced four-post frame, extra-wide captain seat, and powerful rear-wheel drive platform provide outstanding stability and support, while high-capacity batteries deliver up to 32 miles of travel per charge.

Optional positioning accessories and adjustable armrests allow providers to tailor the chair to each user's mobility needs.

General Specifications

Weight Capacity:	600 lbs.
Drive Configuration:	RWD
Turning Radius:	25"
Ground Clearance:	2.5"
Gradient (Incline):	10°
Range Per Charge:	Up to 32 miles
Overall Length:	38"
Overall Width:	31"-33"
Product Weight:	304 lbs.

Seating Details

Seat Type:	Captain or pan seat
Seat Width Options:	24" or 26"
Seat Depth Options:	20"-22"
Seat-to-Floor Height:	Captain: 22"-22.75" Pan: 18.75"-19.5"
Backrest Height:	22"

Compatible Accessories

Accessory	Part Number
66" Seat Belt (Standard is 60”):	43700319
80" Seat Belt (Loop Style):	43701
Backpack - Medium 12" x 13" x 3”:	B1117
Backpack - Deluxe 14” x 16” x 4”:	B1121
Cane Holder:	B6212
Cane & Crutch Holder:	34200010
Cup Holder:	46700060
Cup Holder Mounting Bracket #1:	34103174
Crutch Holder:	B6213
Foldable Rear Basket - Medium:	34200019
Foldable Rear Basket - Large:	34200006
Multi-Accessory Receiver Adaptor:	J4M
Oxygen Tank Holder #2:	B6211
Power Wheelchair Cover - Large:	PWCC
Safety Flag:	F1100
Side Bag:	43701032
USB Charger:	61230167
Walker Holder #1:	34203010
Walker Holder #2:	B6214

Technical Details

Motor:	DC 24V/300W
Controller:	Dynamic LiNX 60A
Battery Size:	75Ah, 12V, 24 AGM (2 required)
Off-Board Charger:	8A
Drive Wheels:	12” foam-filled
Casters:	Front: 9” foam-filled Rear: 3” anti-tippers

Coverage & Billing

Medicare Group:	Group 2
Medicare Code:	K0826/K0827

Product Features

Bariatric Support

A 600-pound weight capacity, extra-wide seat, and extra-high back provide outstanding comfort and support.

Powerful Performance

High-output in-line motors deliver the torque needed to confidently climb ramps up to 10 degrees.

Durable Construction

A reinforced four-post seat frame provides exceptional strength, stability, and long-term durability.

Long-Range

Travel up to 32 miles per charge for dependable mobility throughout the day.

Find a Dealer Near You

Merits products are available exclusively through our network of authorized dealers and retailers. Find the dealer closest to you and take the next step toward greater mobility.
