Dualer

K0830/K0831

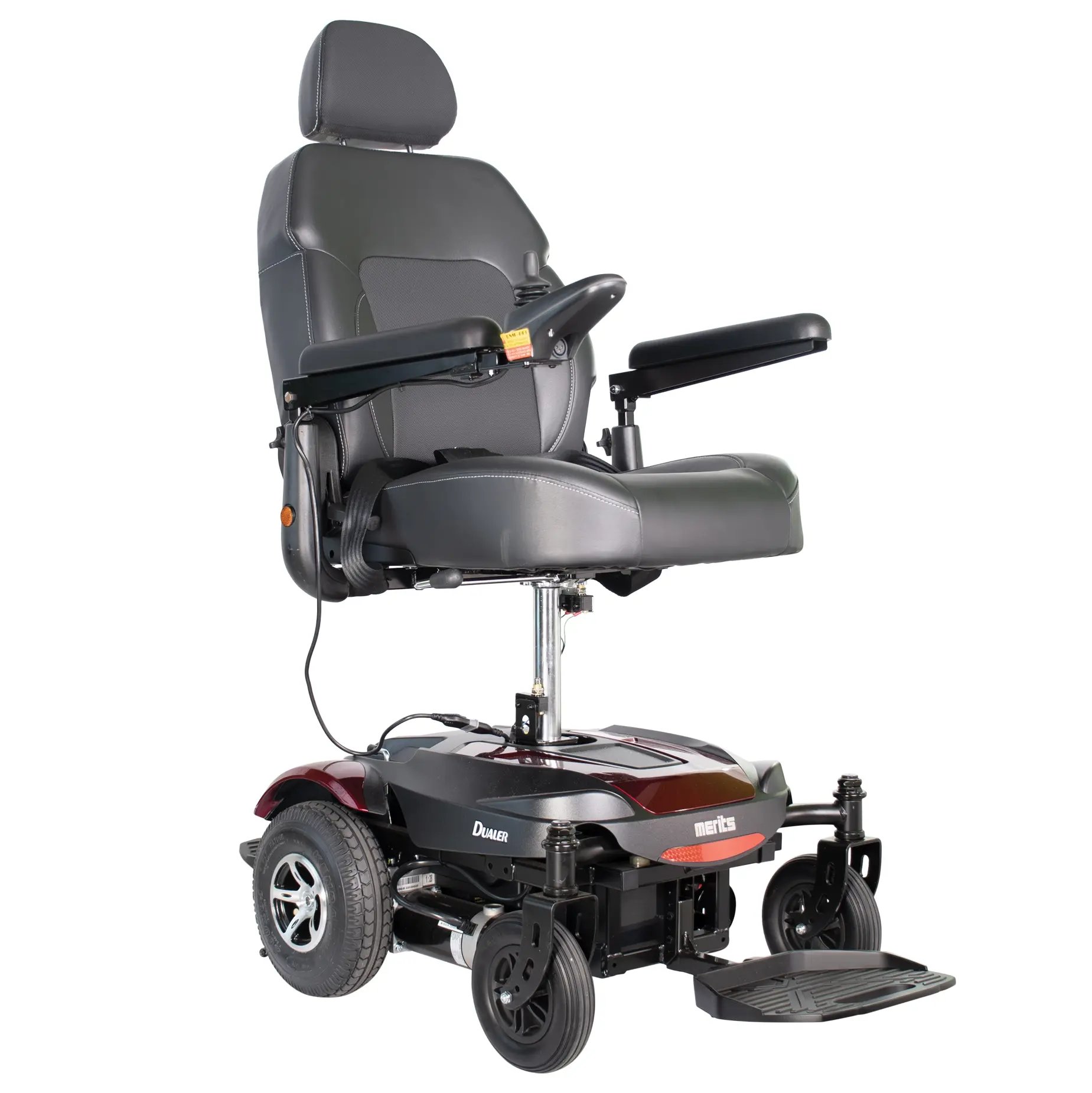

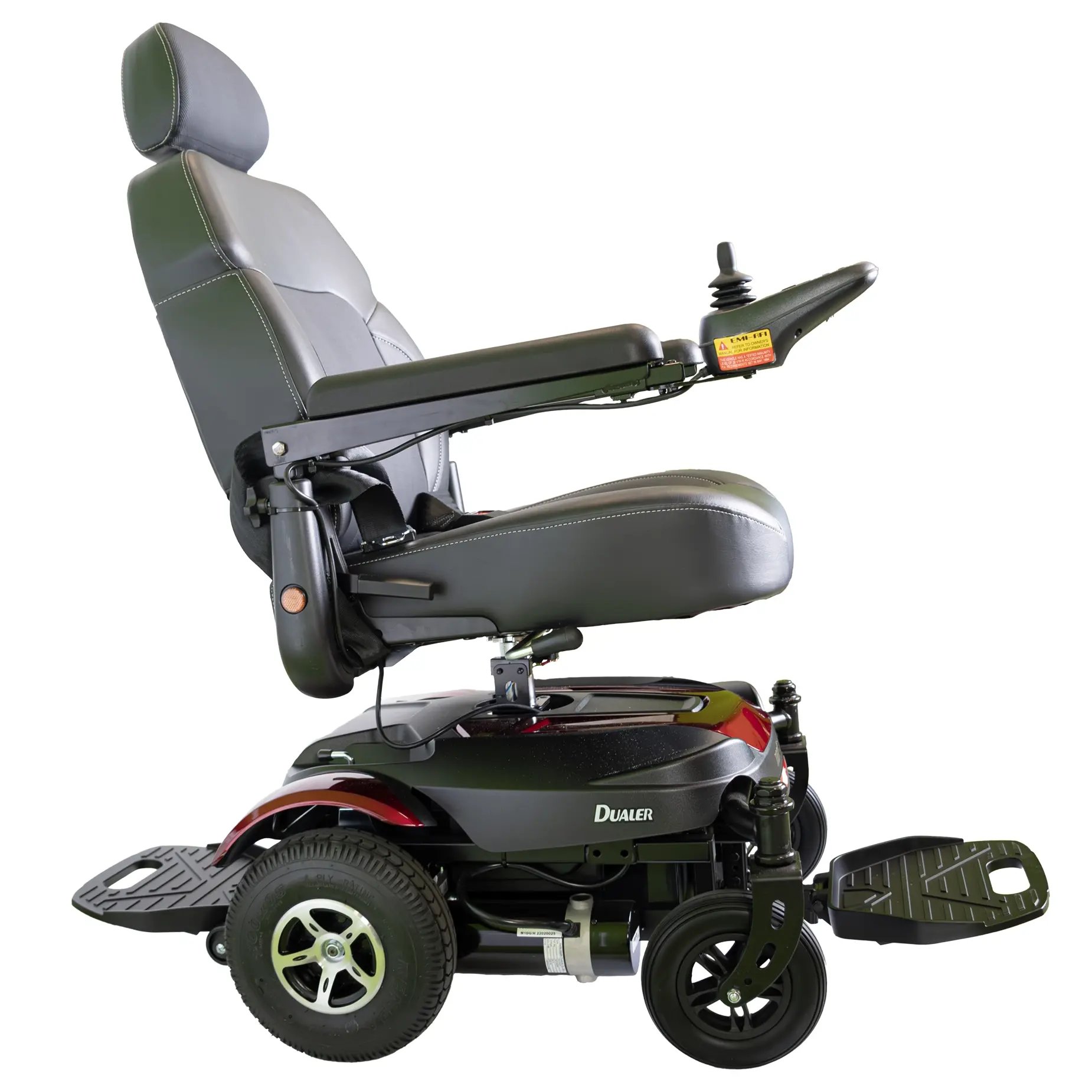

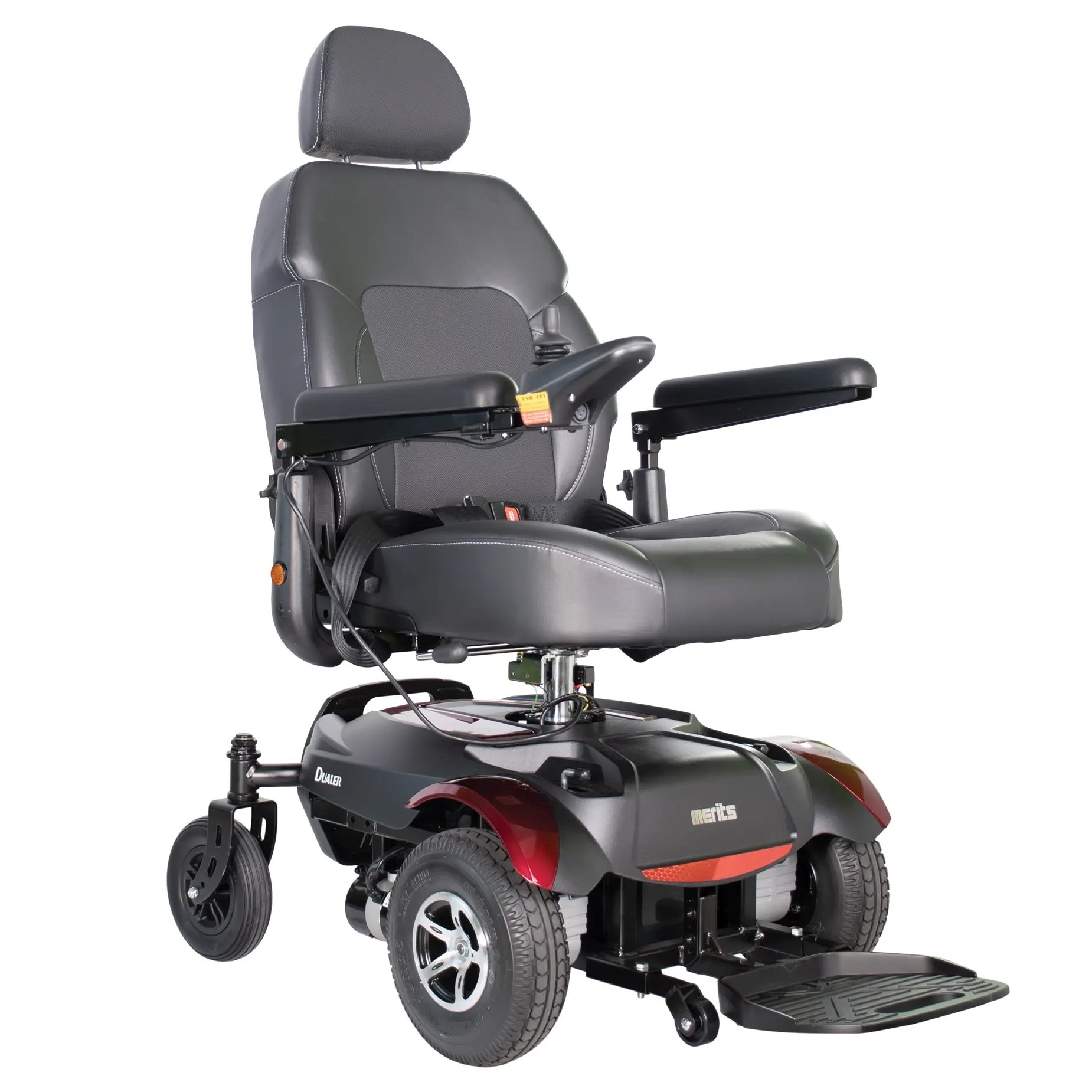

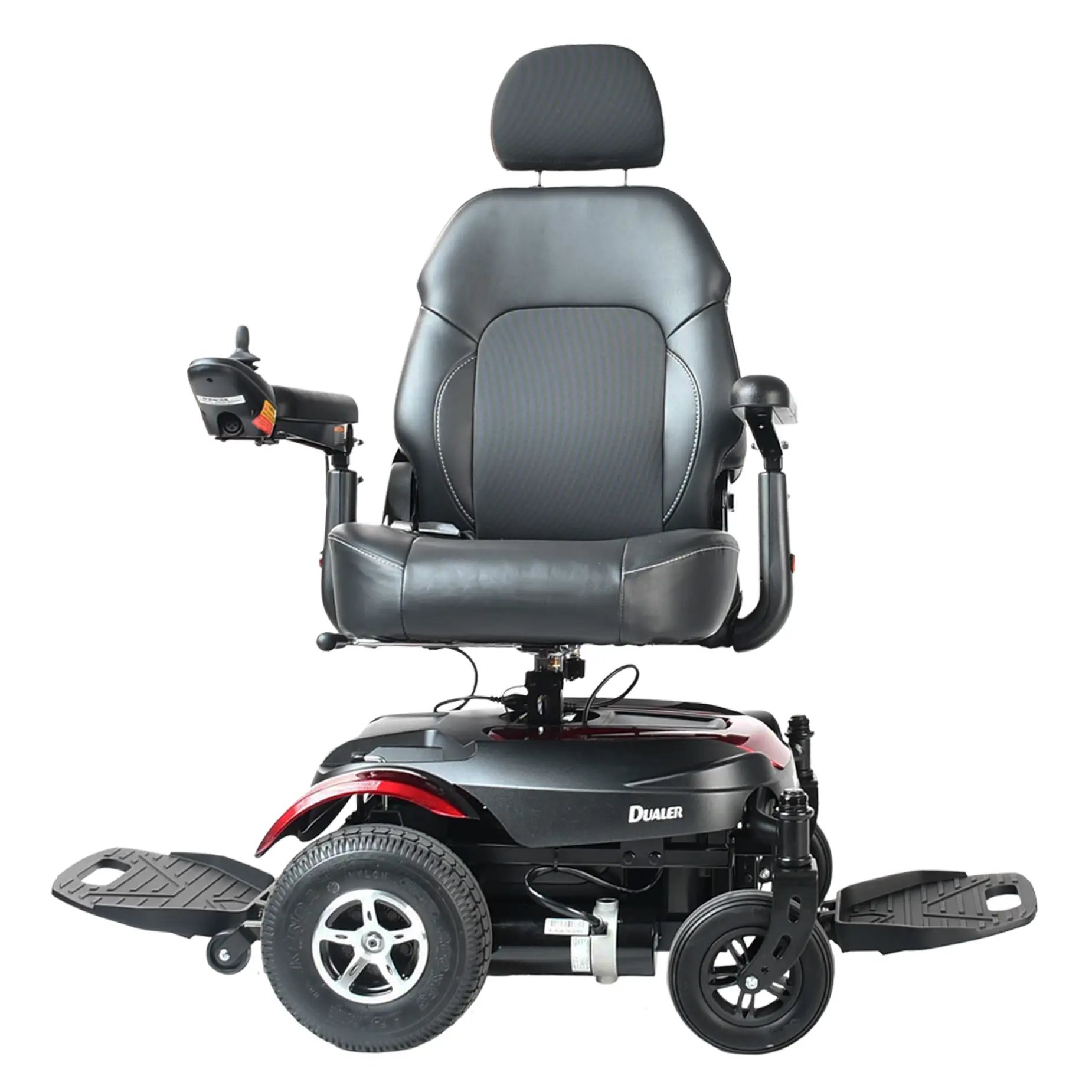

The Dualer is a versatile power wheelchair that uniquely converts from rear-wheel drive to front-wheel drive with a simple seat swivel. Combining a power elevating seat, ergonomic reclining seating, superior traction, and compact maneuverability, it adapts to changing environments while providing comfort, independence, and everyday performance.

Available colors:

Find a Dealer

Download Flier

Product Details

Designed for users who want the flexibility of two drive configurations in one chair, the Dualer seamlessly transitions between rear-wheel and front-wheel drive with a simple seat swivel.

An ergonomic reclining seat, power seat elevation, dual footplates, and multiple seating options combine with excellent traction and maneuverability to create a highly adaptable mobility solution for everyday independence.

General Specifications

Weight Capacity:	300 lbs.
Drive Configuration:	RWD/FWD
Turning Radius:	22.25"
Ground Clearance:	2"
Gradient (Incline):	12°
Range Per Charge:	Up to 18 miles
Overall Length:	34"
Overall Width:	23"-25"
Product Weight:	189 lbs.

Seating Details

Seat Type:	Captain or pan seat
Seat Width Options:	16" or 18"
Seat Depth Options:	18"
Seat-to-Floor Height:	Captain: 22.5" + 5" lift Pan: 19.25" + 5" lift
Backrest Height:	18 or 20"
Elevating Seat:	5” single post lift

Compatible Accessories

Accessory	Part Number
66" Seat Belt (Standard is 60”):	43700319
80" Seat Belt (Loop Style):	43701
Backpack - Medium 12" x 13" x 3”:	B1117
Backpack - Deluxe 14” x 16” x 4”:	B1121
Cane Holder:	B6212
Cane & Crutch Holder:	34200010
Crutch Holder:	B6213
Cup Holder:	46700060
Foldable Rear Basket - Medium:	34200019
Foldable Rear Basket - Large:	34200006
Multi-Accessory Receiver Adaptor:	J4M
Oxygen Tank Holder #2:	B6211
Power Wheelchair Cover - Large:	PWCC
Safety Flag:	F1100
Side Bag:	43701032
USB Charger:	61230167
Walker Holder #1:	34203010
Walker Holder #2:	B6214

Technical Details

Motor:	DC 24V/180W
Controller:	PG VR2 60A
Battery Size:	35Ah, 12V, U1 (2 required)
Off-Board Charger:	5A
Drive Wheels:	10” foam-filled
Casters:	Front: 8" solid Rear: 3" anti-tippers

Coverage & Billing

Medicare Group:	Group 2
Medicare Code:	K0830/K0831

Product Features

Dual Drive System

Quickly switch between rear-wheel drive and front-wheel drive by swiveling the seat to suit different environments.

Power Elevating Seat

A 5-inch power seat elevation enhances accessibility and everyday interaction with people and surroundings.

Reclining Comfort

The ergonomic semi-reclining seat adjusts up to 135° for personalized comfort and support.

Superior Traction

Large 10-inch knobby drive tires provide dependable traction and confident performance across varied terrain.
