Regal

K0822/K0823

The Regal is a compact rear-wheel drive power wheelchair designed to deliver dependable everyday mobility with exceptional maneuverability and comfort. Ergonomic seating, superior traction, obstacle-clearing capability, and an advanced Dynamic LiNX controller combine to provide a smooth, customizable ride for users at home and in the community.

Available colors:

Find a Dealer

Download Flier

The Merits power wheelchair Regal right three-quarter view.

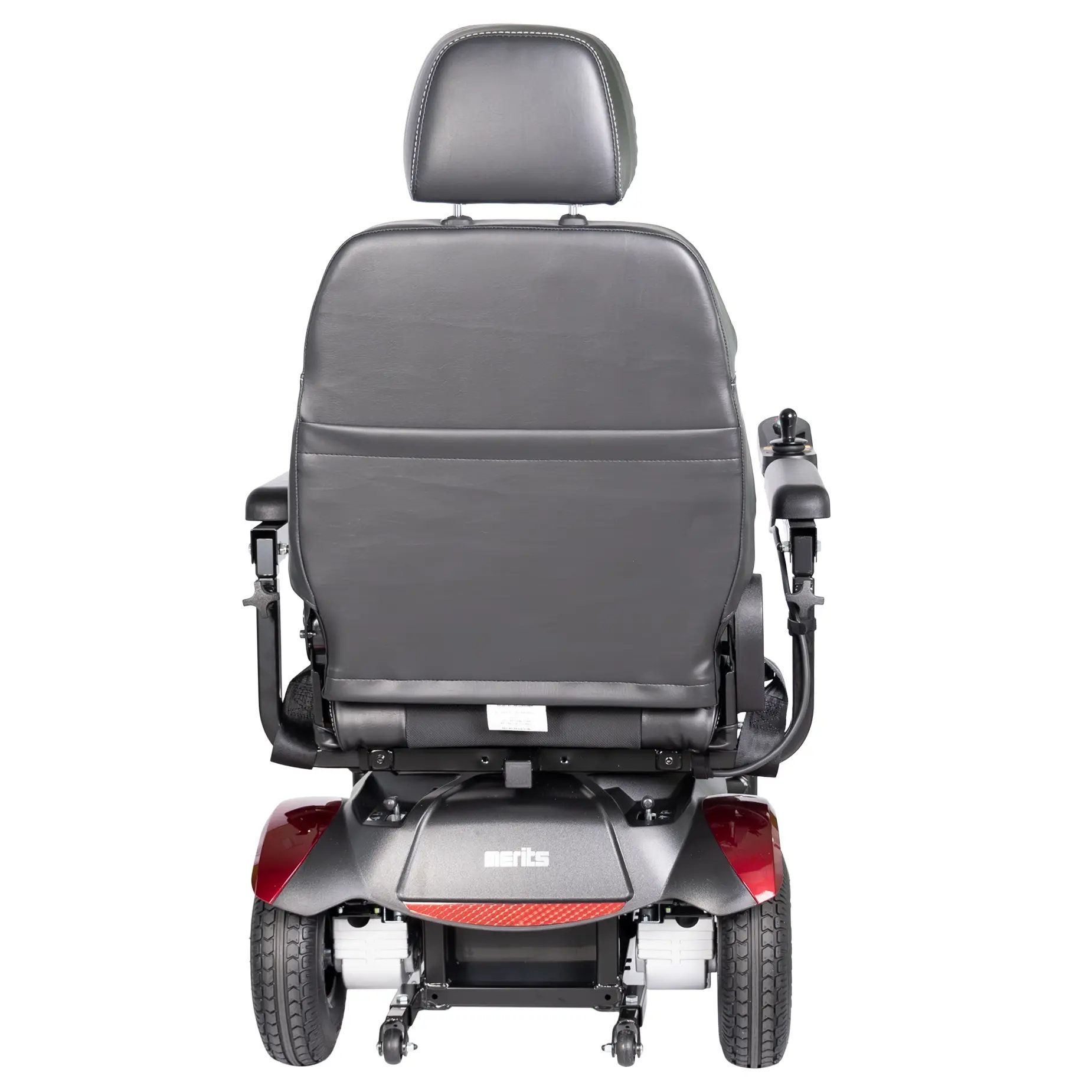

The Merits power wheelchair Regal back view.

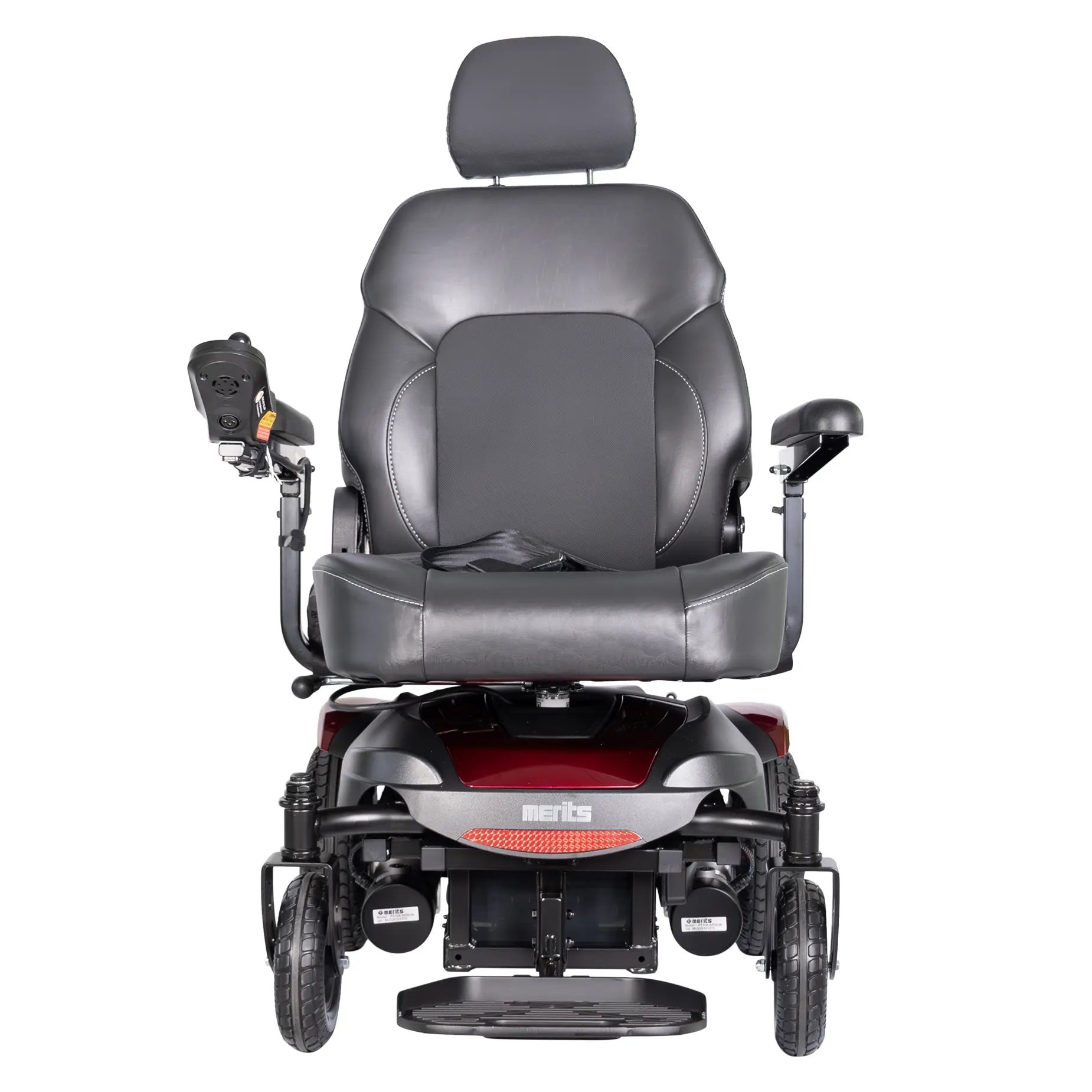

The Merits power wheelchair Regal front view.

Product Details

Built for users who want dependable performance in a compact package, the Regal combines responsive rear-wheel drive handling with comfortable, customizable seating and intuitive controls.

Ergonomic seating options, durable knobby drive tires, and excellent obstacle clearance provide confidence throughout the day, while the Dynamic LiNX controller and available accessories allow providers to tailor the chair for individual mobility and lifestyle needs.

General Specifications

Weight Capacity:	300 lbs.
Drive Configuration:	RWD
Turning Radius:	21.5"
Ground Clearance:	2"
Gradient (Incline):	12°
Range Per Charge:	Up to 18 miles
Overall Length:	36"
Overall Width:	23"-27"
Product Weight:	189 lbs.

Seating Details

Seat Type:	Captain or pan seat
Seat Width Options:	16", 18", or 20"
Seat Depth Options:	16" - 18"
Seat-to-Floor Height:	Captain: 20–23”; Pan: 16.75–19.75"
Backrest Height:	18" or 20"

Compatible Accessories

Accessory	Part Number
66" Seat Belt (Standard is 60”):	43700319
80" Seat Belt (Loop Style):	43701
Cup Holder:	46700060
Power Wheelchair Cover - Large:	PWCC
Safety Flag:	F1100
Side Bag:	43701032
USB Charger:	61230167

Technical Details

Motor:	DC 24V, 180W
Controller:	Dynamic LiNX 50A
Battery Size:	35Ah, 12V, U1 (2 required)
Off-Board Charger:	5A
Drive Wheels:	10” foam-filled
Casters:	Front: 8" foam-filled Rear: 3" anti-tippers

Coverage & Billing

Medicare Group:	Group 2
Medicare Code:	K0822/K0823

Product Features

Ergonomic Seating

Choose from captain or pan seating with ergonomic semi-reclining backrests that recline up to 135°.

Superior Traction

Large 10-inch knobby drive tires provide confident traction across a variety of indoor and outdoor surfaces.

Smart Controls

The Dynamic LiNX controller simplifies programming, diagnostics, and long-term serviceability.

Precision Handling

A tight 21-inch turning radius and 3-inch ground clearance make everyday navigation easier.
