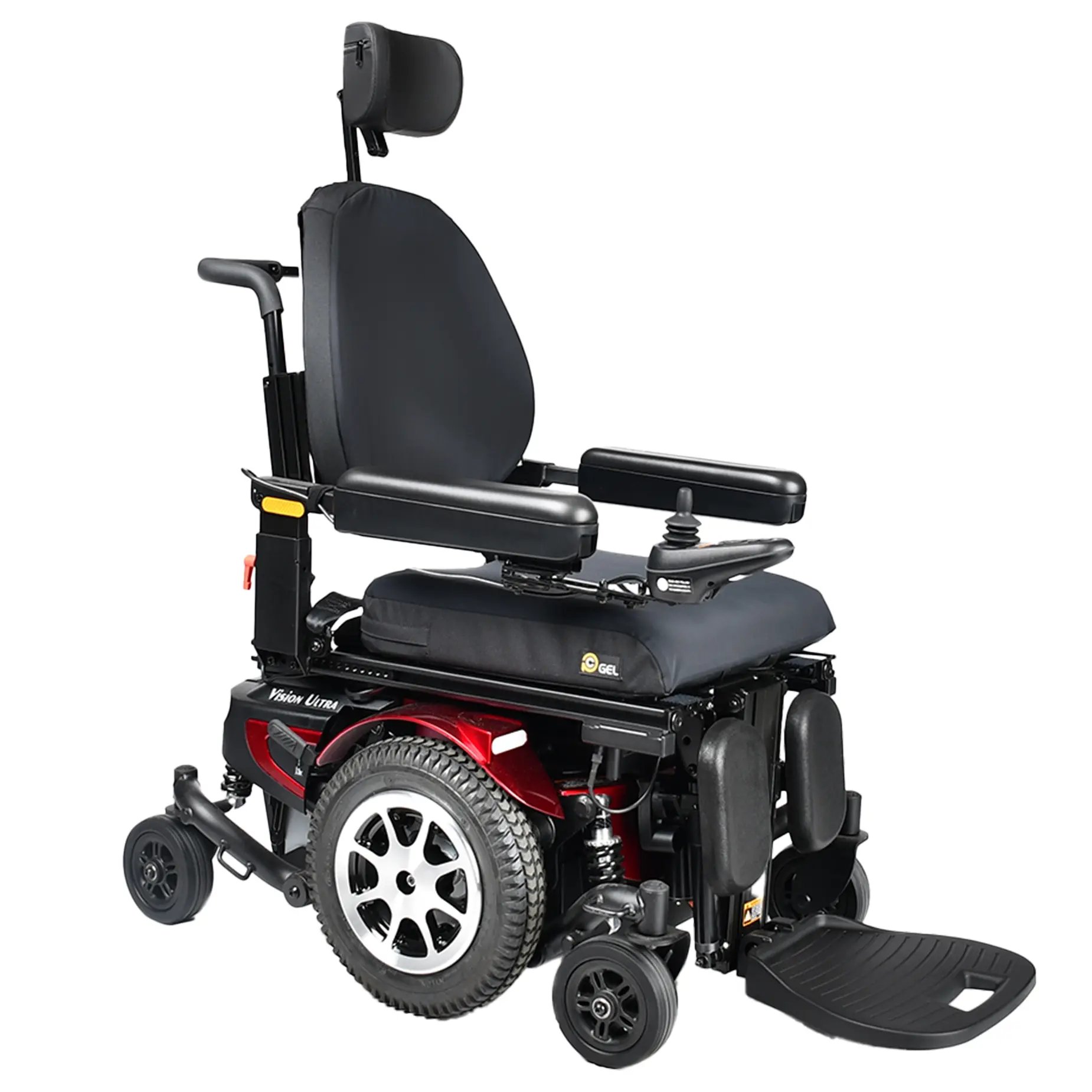

The Merits power wheelchair Ultra.
Avid wheelchair logo

Ultra

K0822/K0823/KO835

The Ultra is a mid-wheel drive power wheelchair that combines everyday maneuverability with advanced positioning and customizable seating. Available with captain, pan, or single power seating, it offers power tilt, recline, adjustable suspension, and configurable seating to support comfort, independence, and clinical flexibility.

Available colors:

Color swatches for the Merits Health Ultra line.

Where to Buy
Download Flyer
The Merits power wheelchair Ultra three-quarters view.

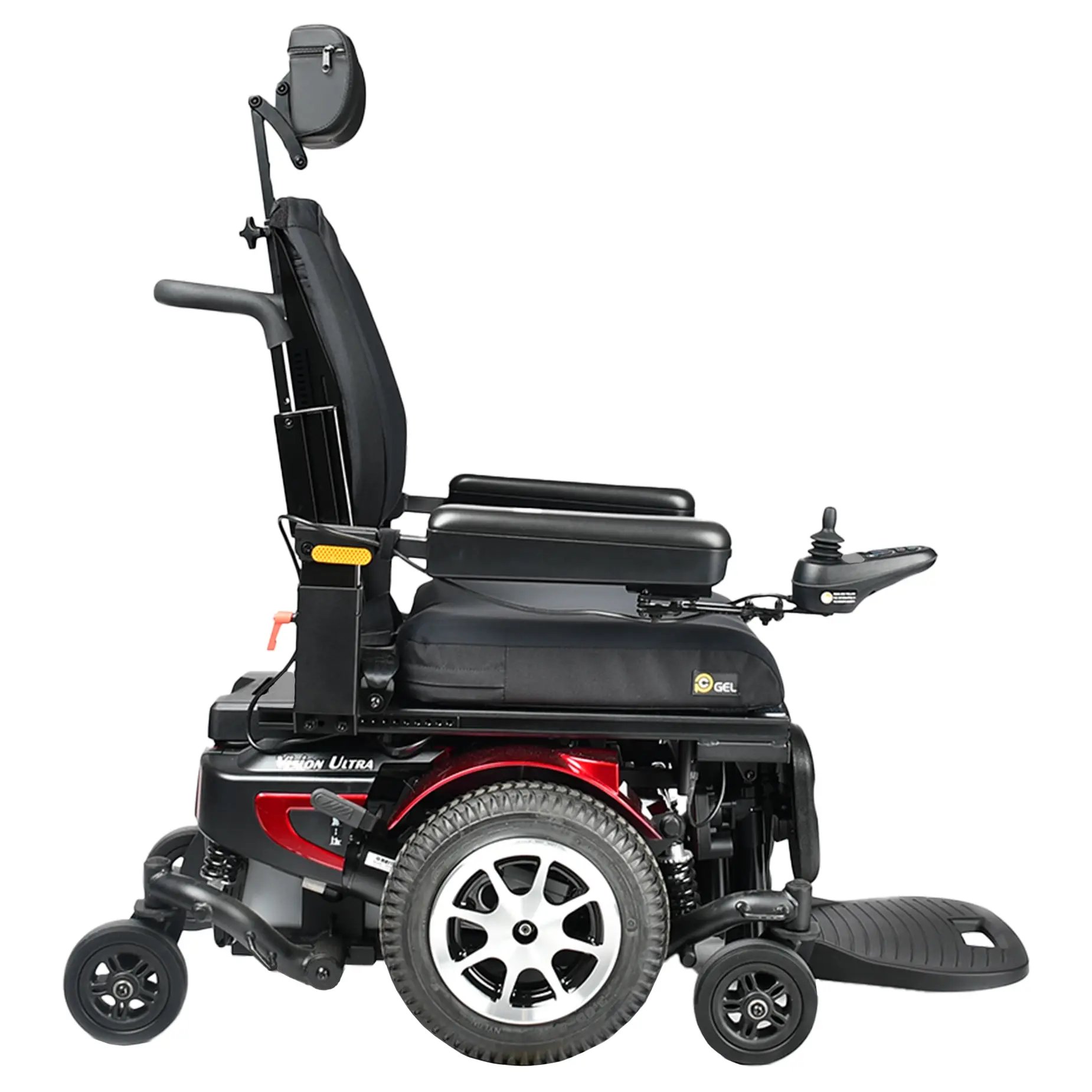

The Merits power wheelchair Ultra right profile view.

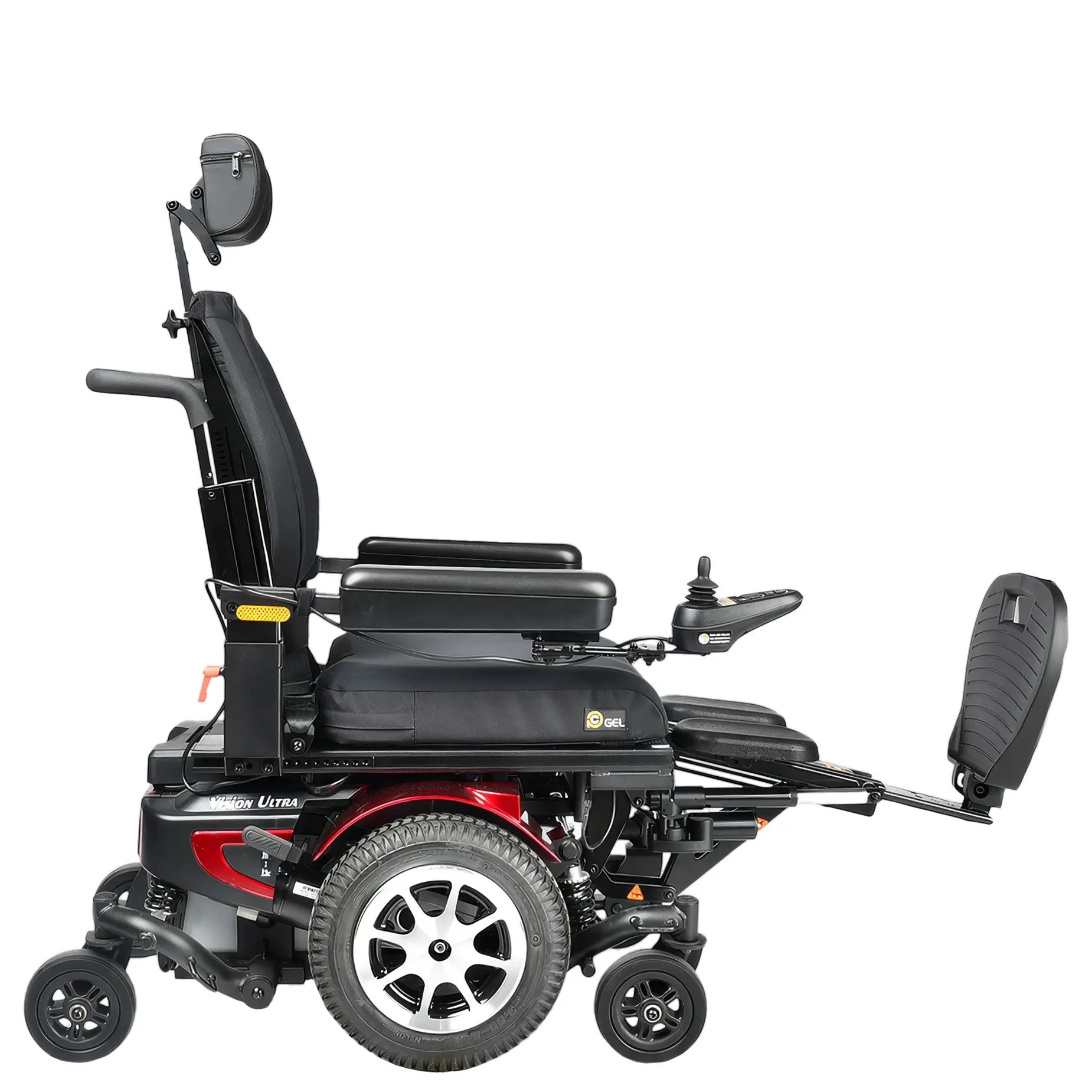

The Merits power wheelchair Ultra right profile articulating foot platform view.

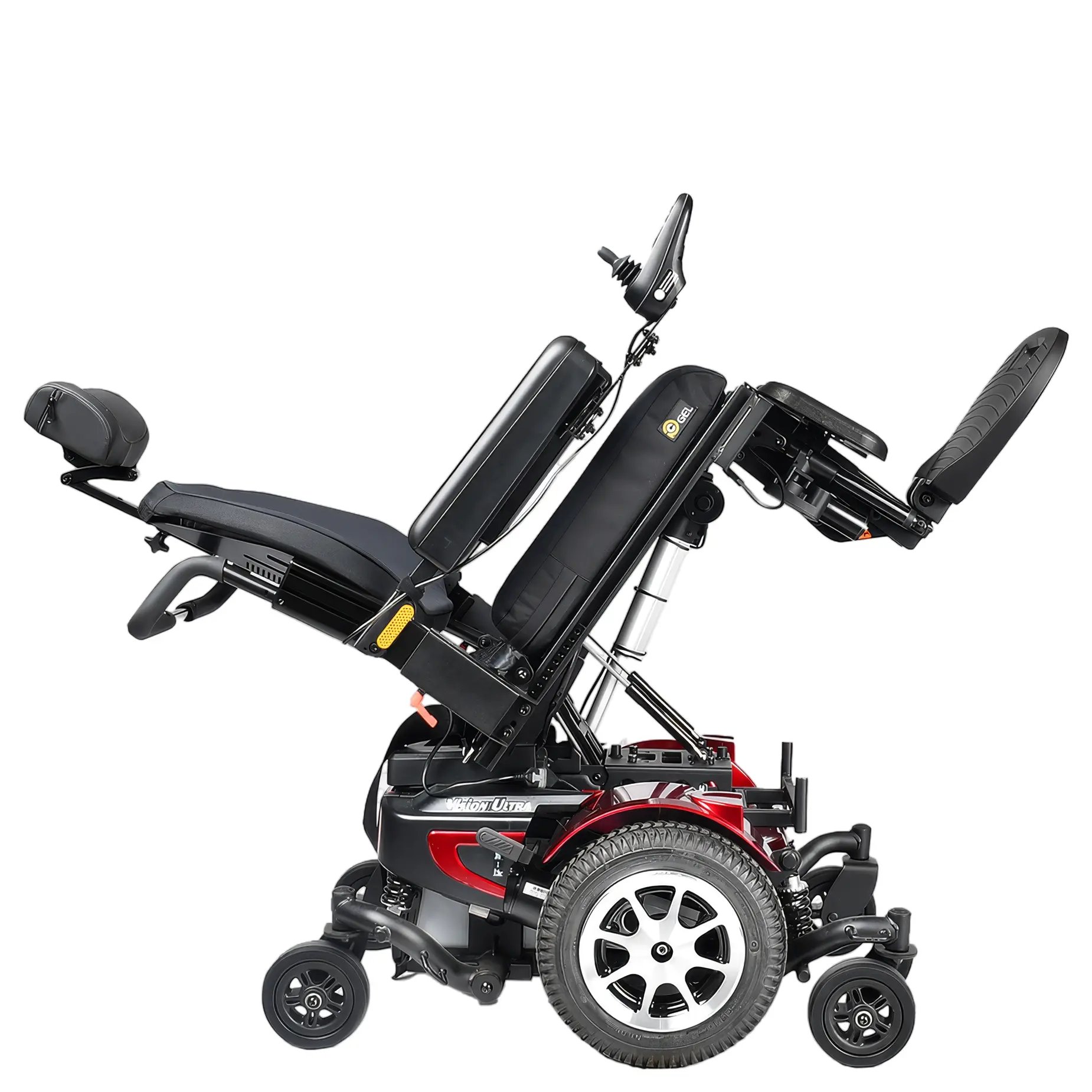

The Merits power wheelchair Ultra right profile tilt view.

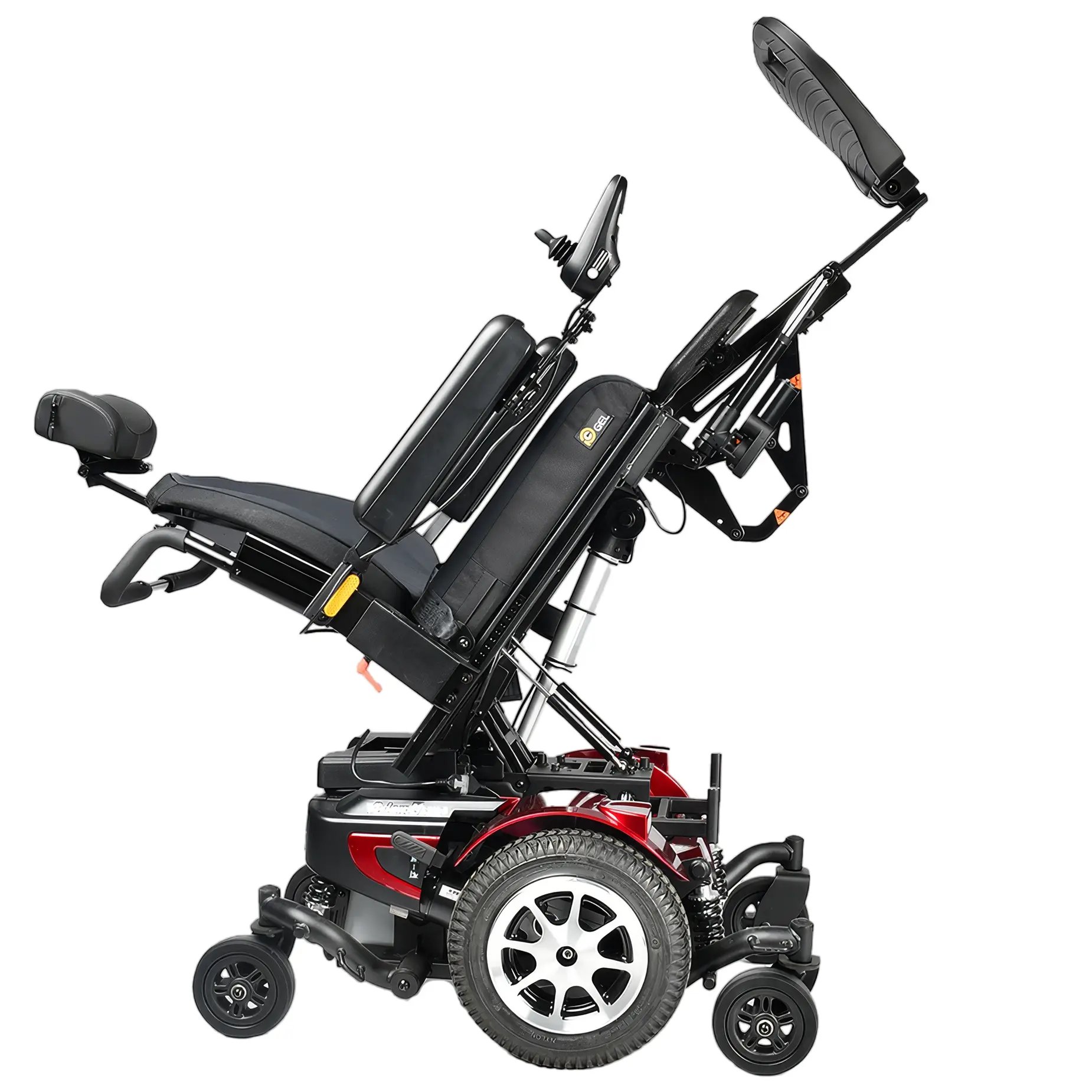

The Merits power wheelchair Ultra right profile tilt articulating platform view.

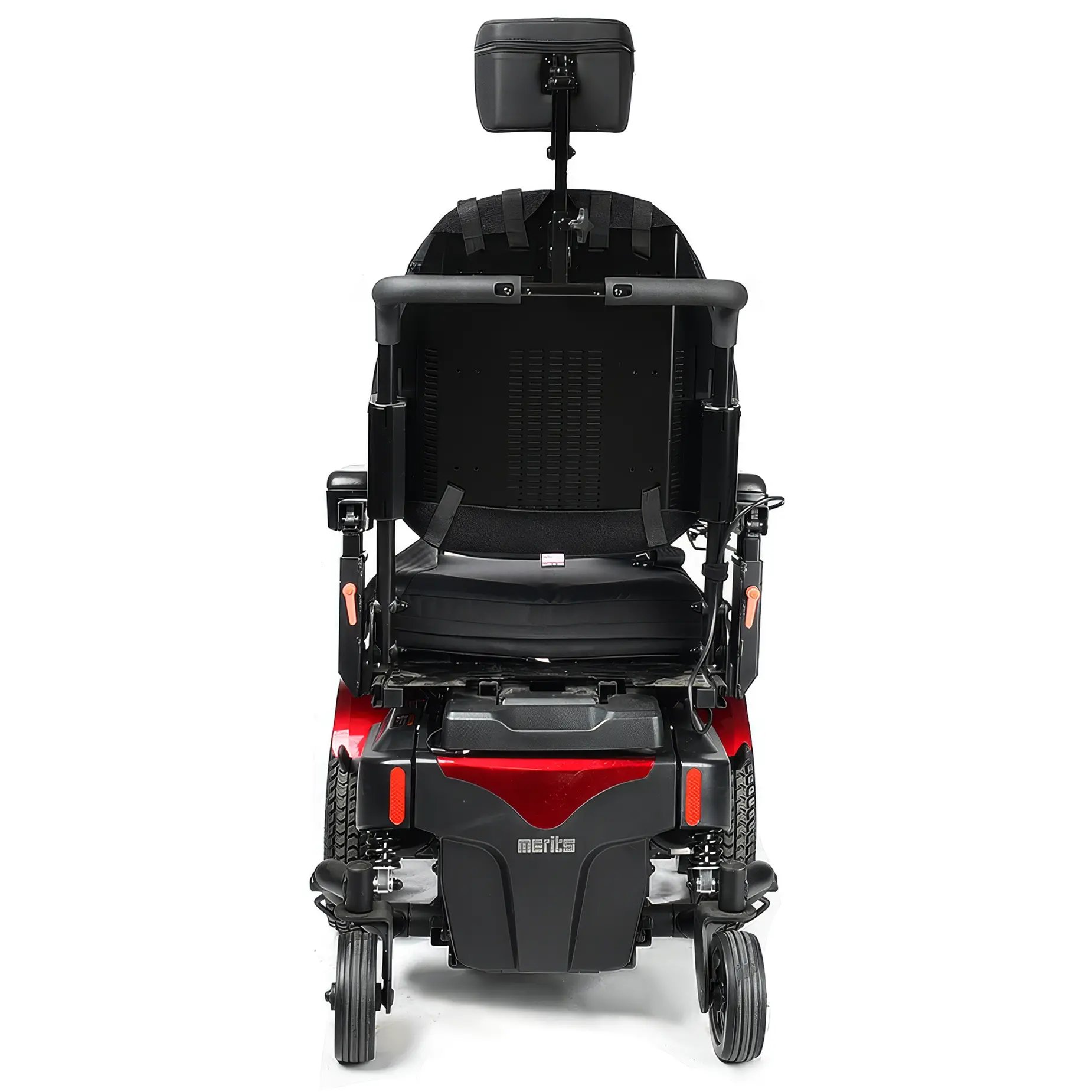

The Merits power wheelchair Ultra back view.

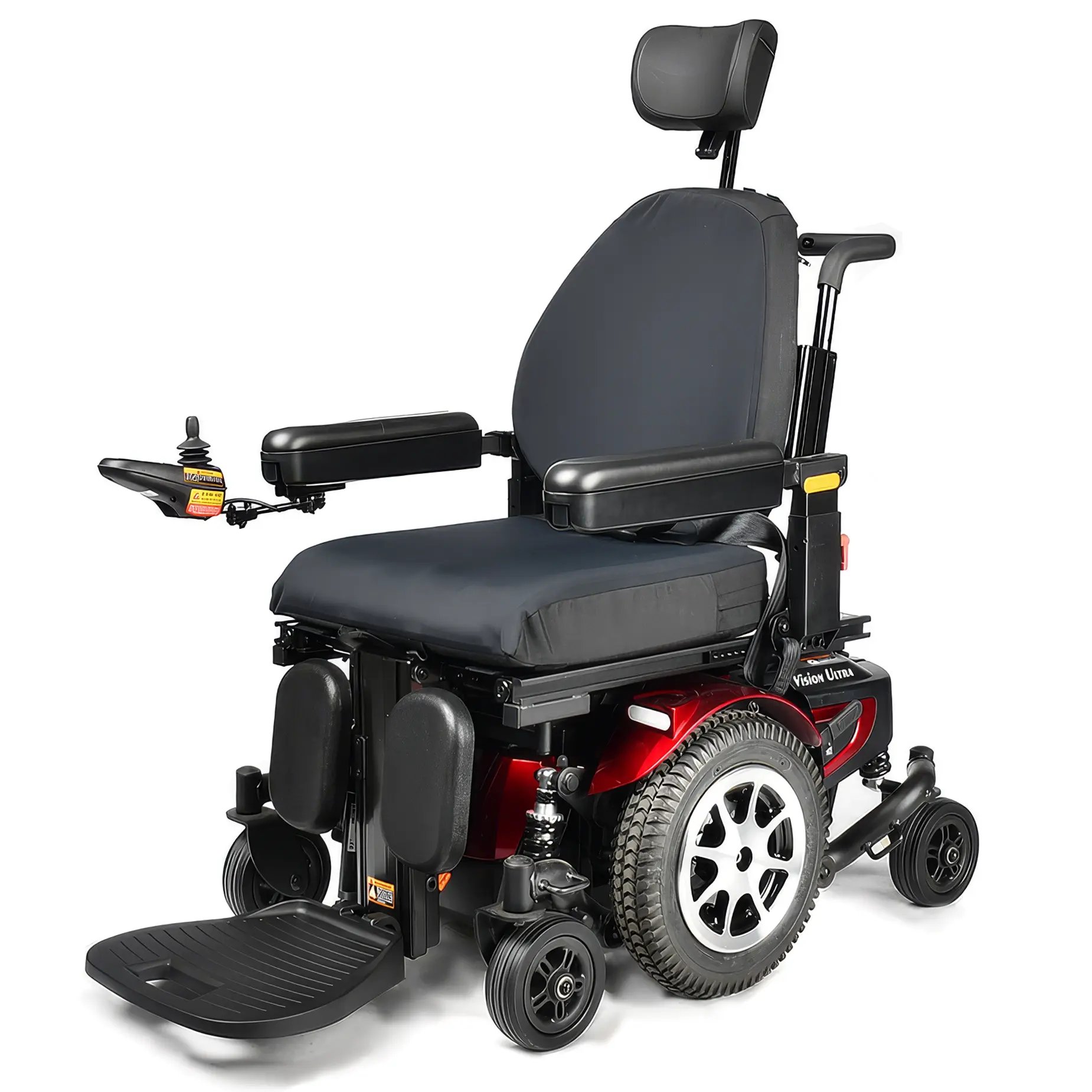

The Merits power wheelchair Ultra left three-quarters view.

Product Details

The Ultra is part of the Avid line—our specialized Complex Rehab Technology brand dedicated to clinical precision, advanced positioning, and deep configurability. Avid power chairs are engineered for certified mobility specialists and clinicians prescribing for patients with progressive or long-term postural needs, delivering the performance and customization that complex rehab demands.

Ultra is designed for users who need dependable mobility with adaptable positioning, delivering a compact mid-wheel drive platform with multiple seating configurations and powered positioning options.

Adjustable seating dimensions, front and rear suspension, and optional seat elevation and articulating foot platform allow providers to tailor the chair for comfort, support, and everyday performance across a variety of clinical needs.

General Specifications
Weight Capacity: 300 lbs.
Drive Configuration: MWD
Turning Radius: 26"
Ground Clearance: 2.5"
Gradient (Incline): 6°
Range Per Charge: Up to 19 miles
Overall Length: 36"
Overall Width: 24"
Product Weight: 315-384 lbs.



Seating Details
Seat Type: Pan, captain, or rehab seating system
Seat Width Options: 16"-22"
Seat Depth Options: 16"-22"
Seat-to-Floor Height: Power tilt/pan: 16.5"–19.5"
Captain: 20"–23"
Backrest Height: 18"-28"
Elevating Seat: 12” cap & pan only



Compatible Accessories
Accessory Part Number
66" Seat Belt (Standard is 60"): 43700319
80" Seat Belt (Loop Style): 43701
Crutch Holder: B6213
Cup Holder: 46700060
Cup Holder Mounting Bracket: 34100323
Oxygen Tank Holder #1: 34100241
Power Wheelchair Cover - Large: PWCC
Safety Flag: F1100
Side Bag: 43701032
USB Charger: 61230167



Technical Details
Motor: 2-pole/240W
Controller: P&G VR2-A2 60A
Battery Size: 55Ah, 22NF AGM
51Ah, 22NF GEL
33Ah, U1 AGM
(2 required)
Off-Board Charger: 6A
Drive Wheels: 14”x 3” foam-filled
Casters: Front: 6" × 2" foam-filled
Rear: 6" × 2" foam-filled



Coverage & Billing
Medicare Group: Group 2
Medicare Code: K0822/K0823/K0835



Product Features

The Merits power wheelchair Ultra offers everyday positioning. The Merits power wheelchair Ultra offers everyday positioning.

Everyday Positioning

Power tilt and shear reduction recline provide enhanced comfort, pressure relief, and personalized positioning.

The Merits power wheelchair Ultra offers smooth suspension. The Merits power wheelchair Ultra offers smooth suspension.

Smooth Suspension

Tension-adjustable front and rear suspension delivers a stable, comfortable ride over changing terrain.

The Merits power wheelchair Ultra offers an adjustable fit. The Merits power wheelchair Ultra offers an adjustable fit.

Adjustable Fit

Seat width and depth adjust in 1-inch increments to accommodate a wide range of user needs.

The Merits power wheelchair Ultra offers flexible seating options. The Merits power wheelchair Ultra offers flexible seating options.

Flexible Seating

Choose from captain, pan, or single power seating to match individual clinical and functional requirements.

Where to Buy

Merits products are available exclusively through our network of authorized dealers and retailers. Find the dealer closest to you and take the next step toward greater mobility.

Find a Dealer
Find a Merits dealer near you.
