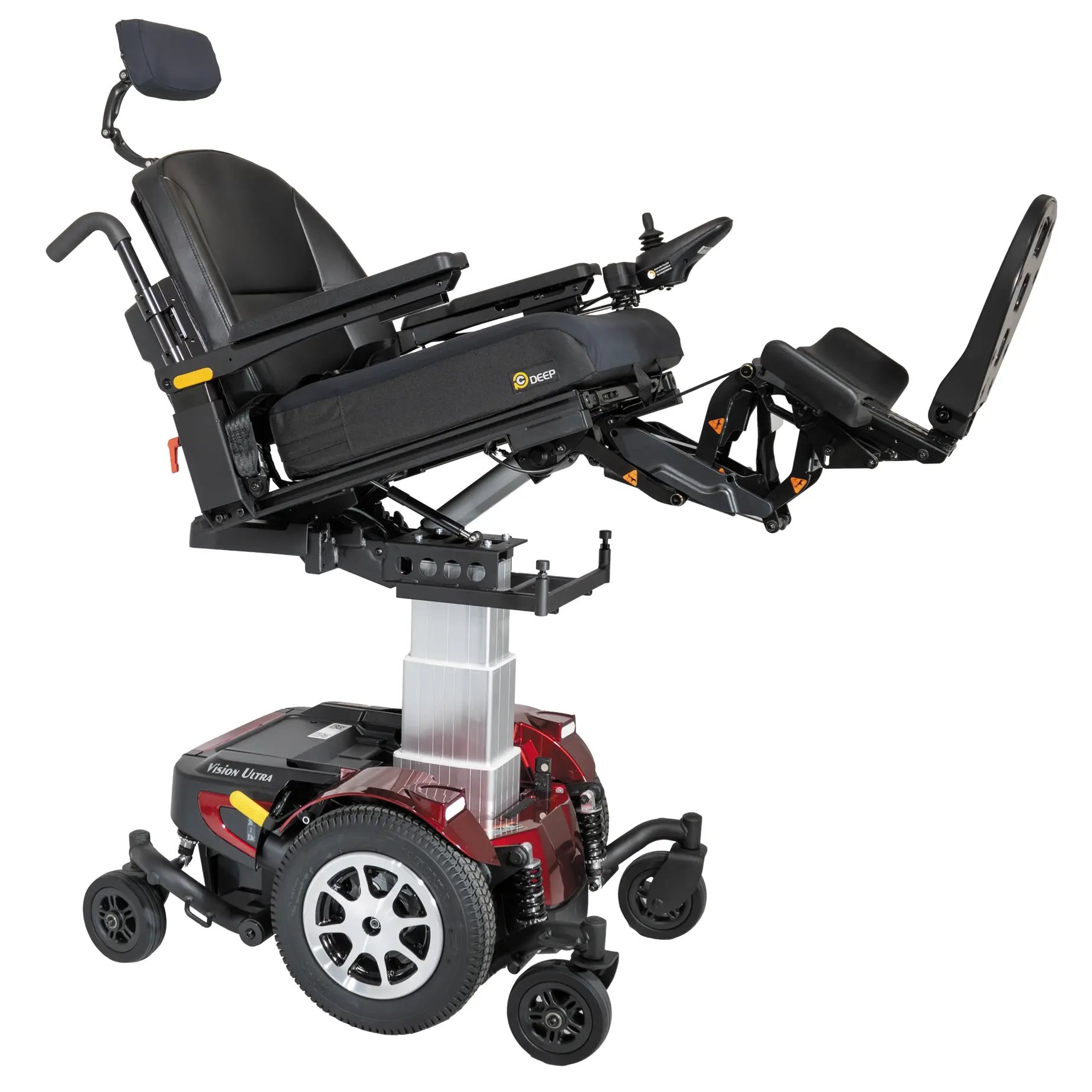

Ultra3A_LiftTiltAFP
Avid wheelchair logo

Ultra 3 Actuator

K0835

The Ultra 3A is a mid-wheel drive power wheelchair designed to deliver advanced positioning in a streamlined package. Combining power tilt, seat elevation, and an articulating foot platform with a compact footprint and adjustable suspension, it provides personalized comfort, pressure relief, and dependable everyday mobility.

Available colors:

Color swatches for the Merits Health Ultra line.

Where to Buy
Download Flyer
Ultra 3A Tilt

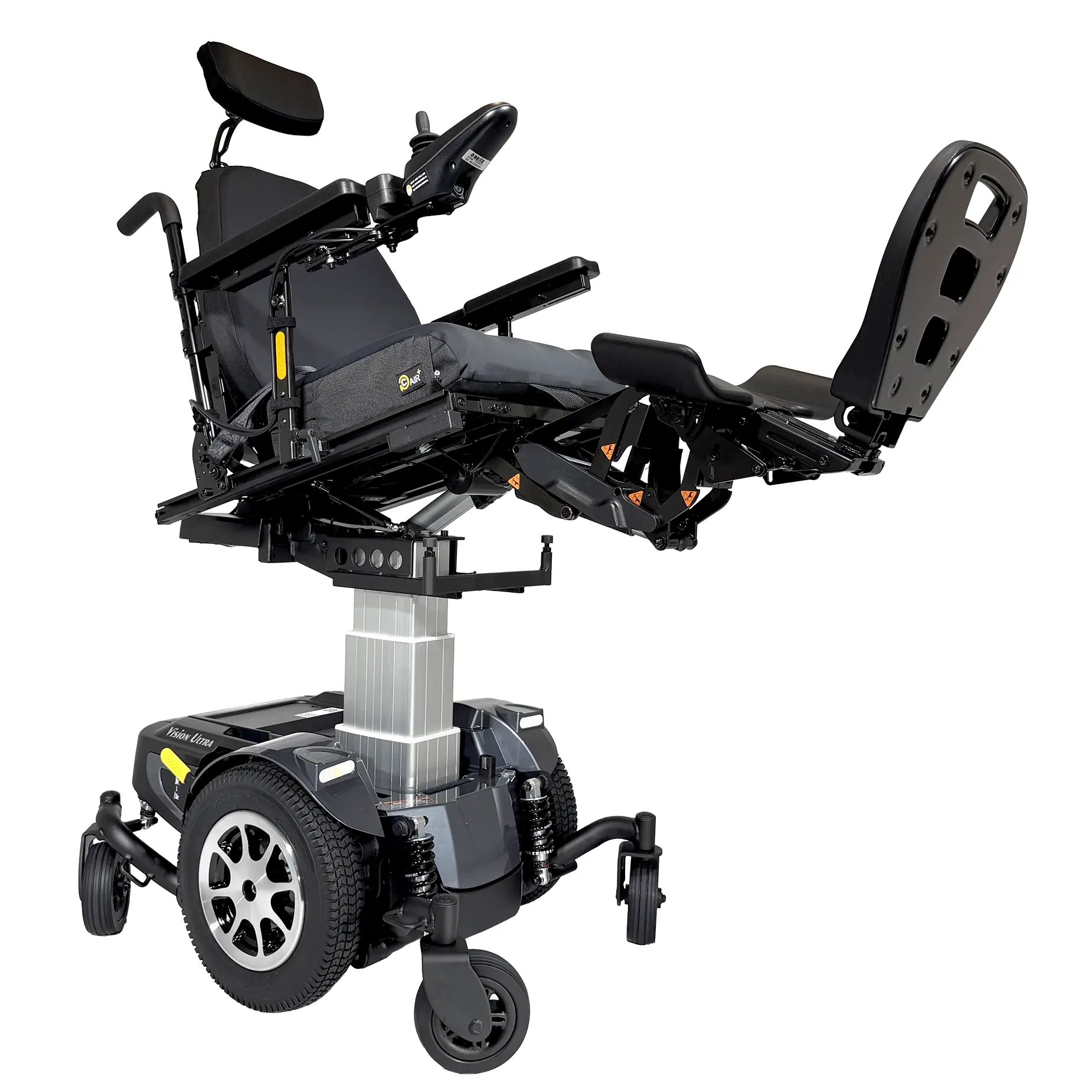

Ultra 3A Lift and Tilt
Ultra 3A Lift
Ultra 3A Front View
Ultra 3A Left View

Product Details

The Ultra 3 Actuator is part of the Avid line—our specialized Complex Rehab Technology brand dedicated to clinical precision, advanced positioning, and deep configurability. Avid power chairs are engineered for certified mobility specialists and clinicians prescribing for patients with progressive or long-term postural needs, delivering the performance and customization that complex rehab demands.

The Ultra 3 Actuator is designed for users who need advanced positioning without the complexity of higher-group power mobility, combining three powered actuators using a single power source.

Power tilt, elevation, and articulating foot positioning work together to improve comfort and support, while adjustable seating, front and rear suspension, and extended battery range provide dependable performance throughout the day.





General Specifications
Weight Capacity: 300 lbs.
Drive Configuration: MWD
Turning Radius: 26"
Ground Clearance: 2.5"
Gradient (Incline): 6°
Range Per Charge: Up to 19 miles
Overall Length: 36"
Overall Width: 24"
Product Weight: 384 lbs.



Seating Details
Seat Type: Rehab seating system
Seat Width Options: 16-22"
Seat Depth Options: 16-22"
Seat-to-Floor Height: Power tilt/pan: 16.5"–19.5"
Captain: 20"–23"
Backrest Height: 21"-23"
Elevating Seat: 12” power elevation



Compatible Accessories
Accessory Part Number
66" Seat Belt (Standard is 60"): 43700319
80" Seat Belt (Loop Style): 43701
Cup Holder: 46700060
Cup Bolder Mounting Bracket: 34100323
Oxygen Tank Holder #1: 34100241
Power Wheelchair Cover - Large: PWCC
Safety Flag: F1100
Side Bag: 43701032
USB Charger: 61230167



Technical Details
Motor: 2-pole/240W
Controller: P&G VR2-A2 60A
Battery Size: 55Ah, 22NF AGM
51Ah, 22NF GEL
33Ah, U1 AGM
(2 required)
Off-Board Charger: 6A
Drive Wheels: 14”x 3” foam-filled
Casters: Front: 6" × 2" foam-filled
Rear: 6" × 2" foam-filled



Coverage & Billing
Medicare Group: Group 2
Medicare Code: K0835



Product Features

The Merits power wheelchair Ultra 3 Actuator offers advanced positioning. The Merits power wheelchair Ultra 3 Actuator offers advanced positioning.

Advanced Positioning

Power tilt, seat elevation, and an articulating foot platform provide customizable positioning for greater comfort and pressure management.

The Merits power wheelchair Ultra 3 Actuator provides articulating foot platforms. The Merits power wheelchair Ultra 3 Actuator provides articulating foot platforms.

Articulating Foot Platform

The powered foot platform simultaneously extends and articulates to improve lower extremity support and positioning.

The Merits power wheelchair Ultra 3 Actuator offers smooth suspension. The Merits power wheelchair Ultra 3 Actuator offers smooth suspension.

Smooth Suspension

Tension-adjustable front and rear suspension delivers a stable, comfortable ride across changing surfaces.

The Merits power wheelchair Ultra 3 Actuator provides adjustable fitting. The Merits power wheelchair Ultra 3 Actuator provides adjustable fitting.

Adjustable Fit

Configurable seat width and depth allow providers to tailor the chair to each user's individual needs.
