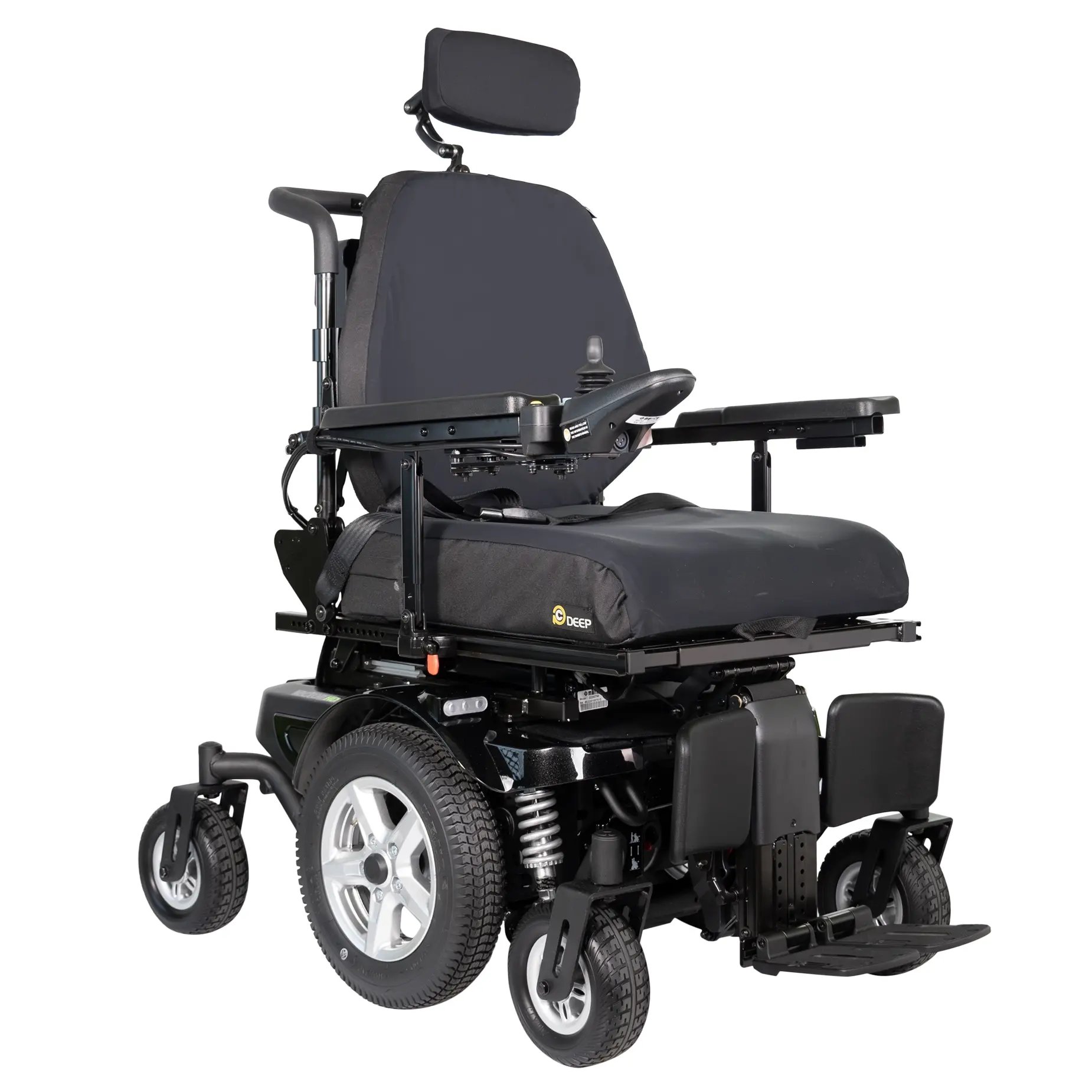

The Merits power wheelchair Vector HD.
Avid Vector HD wheelchair logo

Vector HD

K0850/K0858/K0862

The Vector HD is a super heavy-duty mid-wheel drive power wheelchair engineered for bariatric users who need exceptional strength, stability, and everyday performance. With a 400-pound weight capacity, full suspension, dual in-line motors, and customizable seating, it delivers dependable mobility across a wide range of environments.

Available colors:

Color swatches for the Merits Health Vector line.

Where to Buy
Download Flyer
The Merits power wheelchair Vector HD three-quarter view.

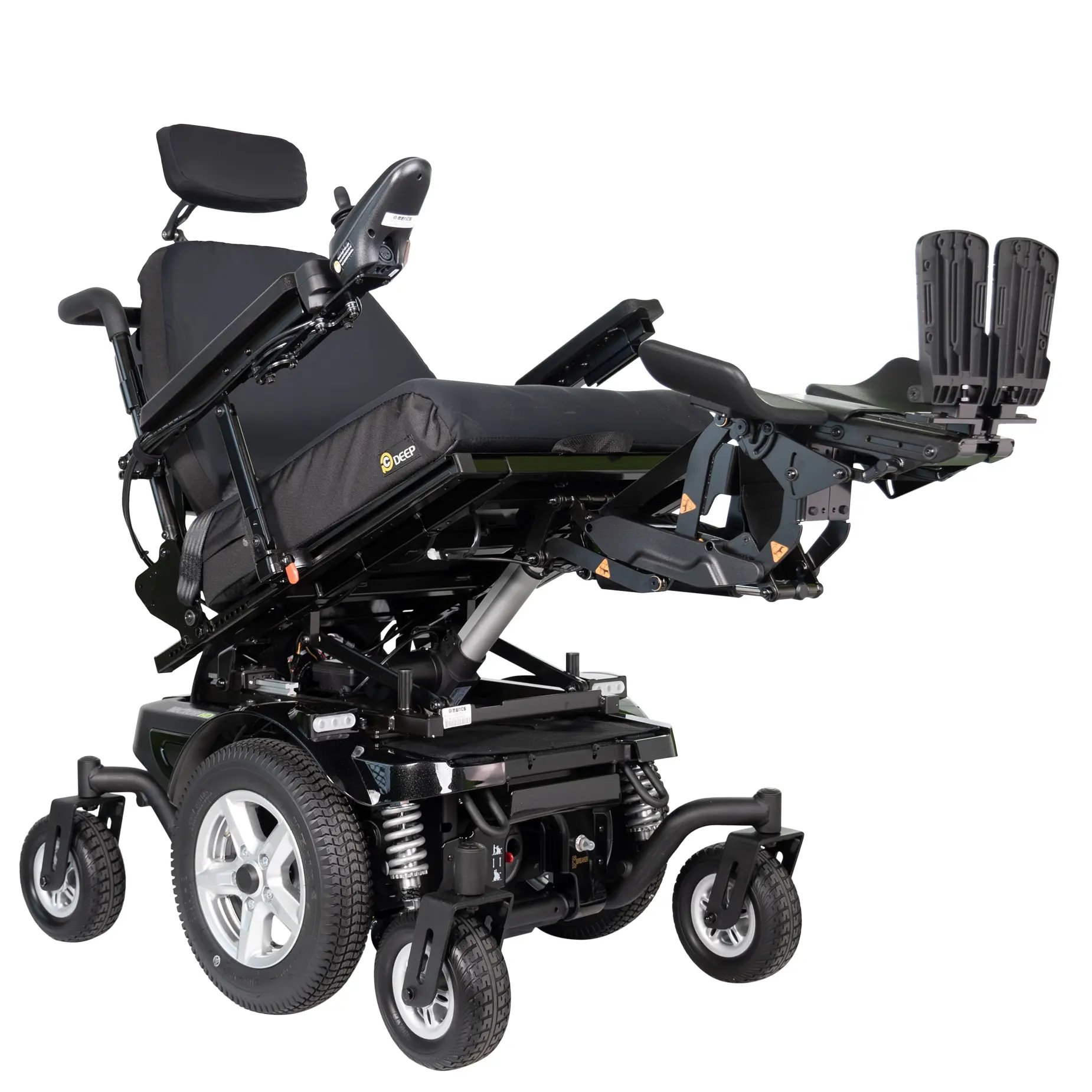

The Merits power wheelchair Vector HD three-quarter tilt view.

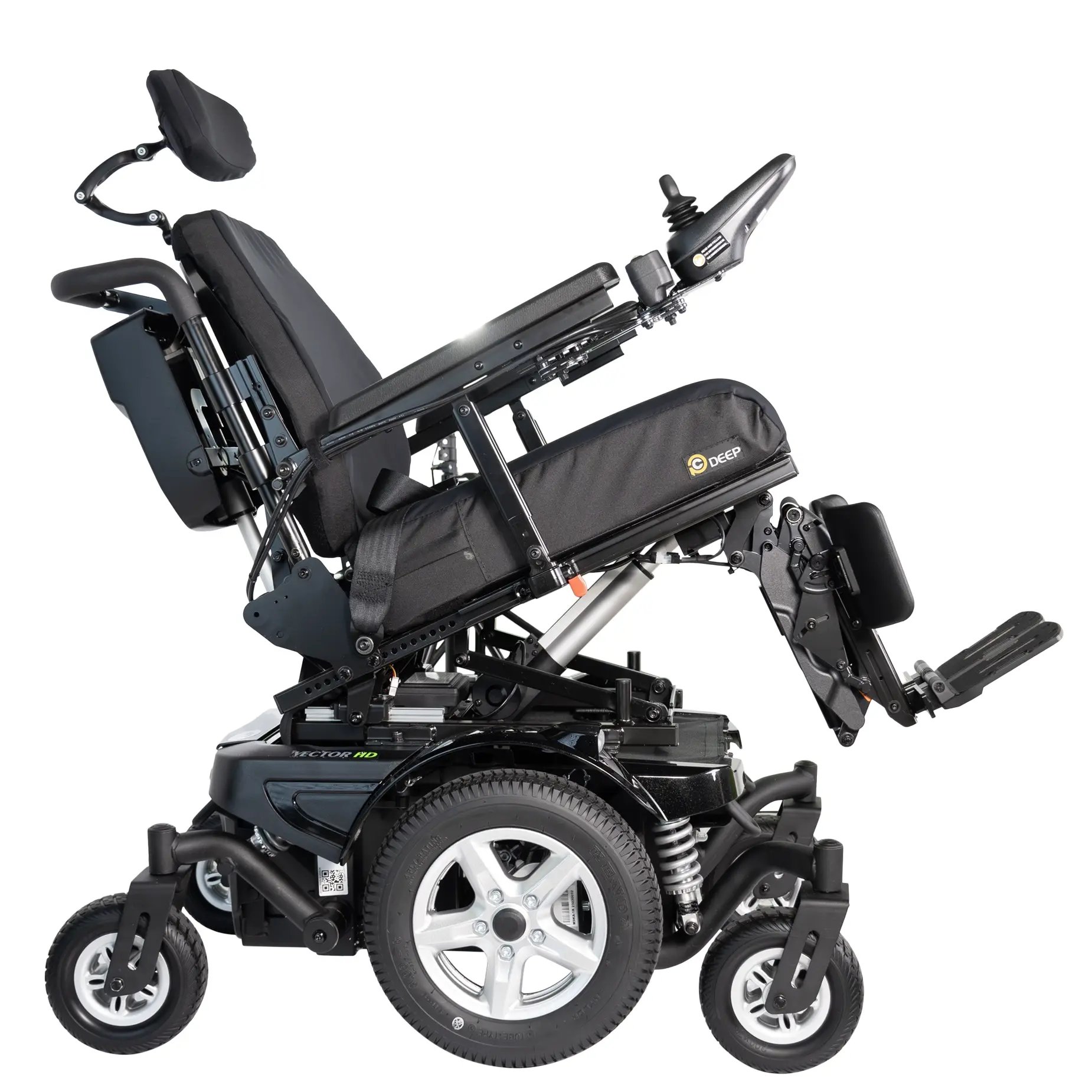

The Merits power wheelchair Vector HD right profile view.

Product Details

The Vector HD is part of the Avid line—our specialized Complex Rehab Technology brand dedicated to clinical precision, advanced positioning, and deep configurability. Avid power chairs are engineered for certified mobility specialists and clinicians prescribing for patients with progressive or long-term postural needs, delivering the performance and customization that complex rehab demands.

The Vector HD is built for users who require maximum support without compromising maneuverability, combining a durable mid-wheel drive platform with full suspension and dual in-line motors for smooth, dependable performance.

A wide range of seating and positioning options allows for individualized configurations, while its heavy-duty construction, generous weight capacity, and service-friendly design make it ideal for demanding everyday use.





General Specifications
Weight Capacity: 400 lbs.
Drive Configuration: MWD
Turning Radius: 27"
Ground Clearance: 3"
Gradient (Incline): 6°
Range Per Charge: Up to 12.5 miles
Overall Length: 47"
Overall Width: 25"
Product Weight: 315-416 lbs.



Seating Details
Seat Type: Rehab seating system
Seat Width Options: 18-24"
Seat Depth Options: 16-22"
Seat-to-Floor Height: 18.5-19.5”
Backrest Height: 18-28"
Elevating Seat: Optional 12"



Compatible Accessories
Accessory Part Number
66" Seat Belt (Standard is 60"): 43700319
80" Seat Belt (Loop Style): 43701
Cup Holder: 46700060
Power Wheelchair Cover - Large: PWCC
Safety Flag: F1100
Side Bag: 43701032
USB Charger: 61230167



Technical Details
Motor: 4-Pole/200W
Controller: P&G VR2 or R-NET
Battery Size: 55Ah, 22NF AGM or 51Ah, 22NF GEL (2 required)
Off-Board Charger: 6 Amp
Drive Wheels: 14”x 3” foam-filled
Casters:

Front: 8" × 3" foam-filled
Rear: 8" × 3" foam-filled



Coverage & Billing
Medicare Group: Group 3
Medicare Code: K0850/K0858/K0862



Product Features

The Merits Vector HD provides heavy-duty support. The Merits Vector HD provides heavy-duty support.

Heavy-Duty Support

A 450-pound weight capacity and wider casters provide outstanding stability and confidence for bariatric users.

The Merits Vector HD provides smooth suspension. The Merits Vector HD provides smooth suspension.

Smooth Suspension

Full front and rear suspension absorbs bumps and curbs for a more comfortable, controlled ride.

The Merits Vector HD provides powerful performance. The Merits Vector HD provides powerful performance.

Powerful Performance

Dual in-line motors deliver enhanced torque, efficiency, range, and reliable everyday performance.

The Merits Vector HD provides customizable seating. The Merits Vector HD provides customizable seating.

Customizable Seating

Multiple seating, armrest, footplate, and joystick options help tailor the chair to individual clinical and functional needs.
