The Merits power wheelchair Vision CF.
Merits Wheelchair Logo

Vision CF

K0815/K0816/K0820/K0821

The Vision CF is a compact front-wheel drive power wheelchair engineered for outstanding maneuverability, superior traction, and personalized comfort. Featuring an ultra-tight turning radius, customizable seating, ergonomic support, and advanced Dynamic LiNX controls, it delivers dependable mobility and responsive performance for everyday indoor and outdoor use.

Available colors:

Color swatches for the Merits Health Vision CF.

Find a Dealer
Download Flier
The Merits power wheelchair Vision CF three-quarter view.

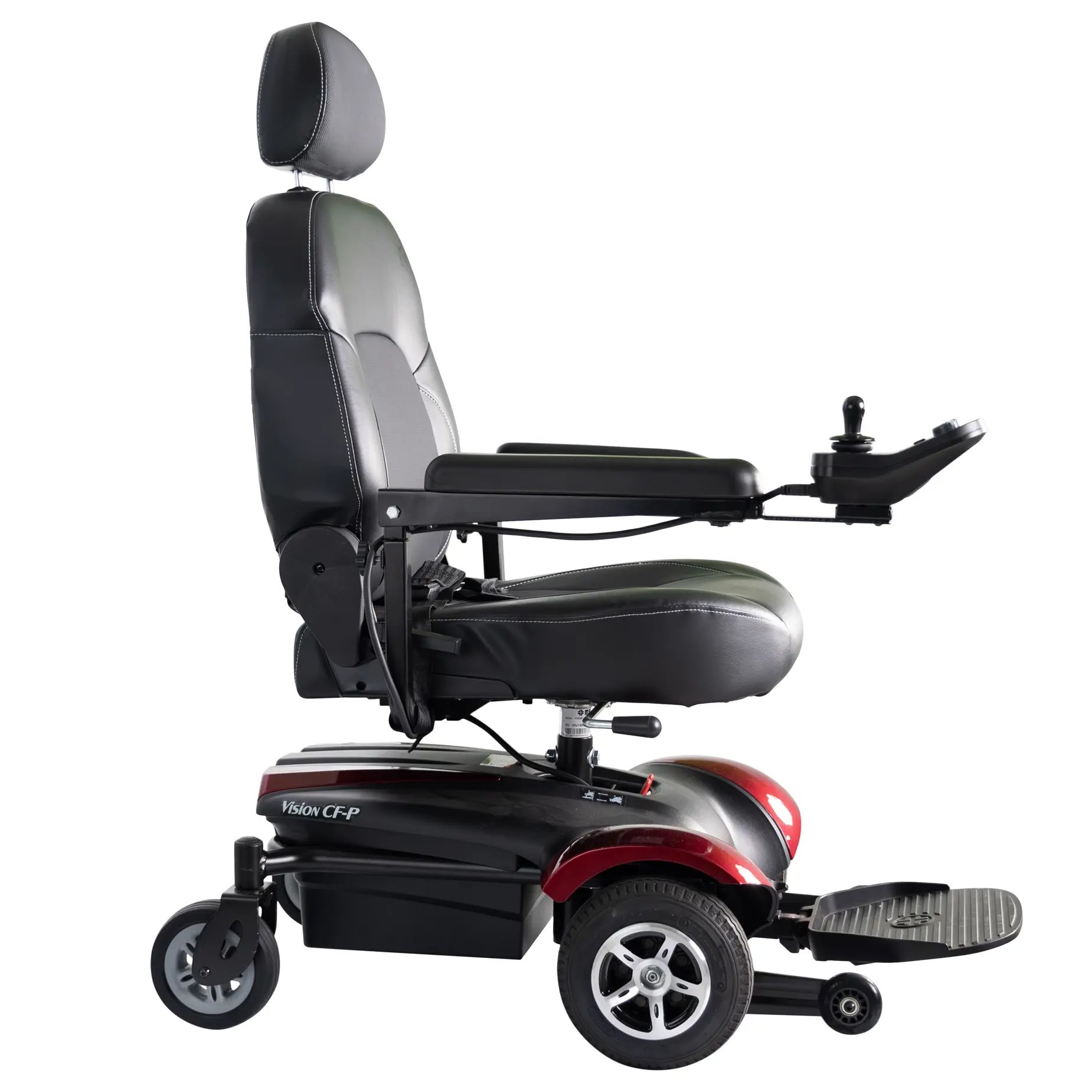

The Merits power wheelchair Vision CF right profile view.

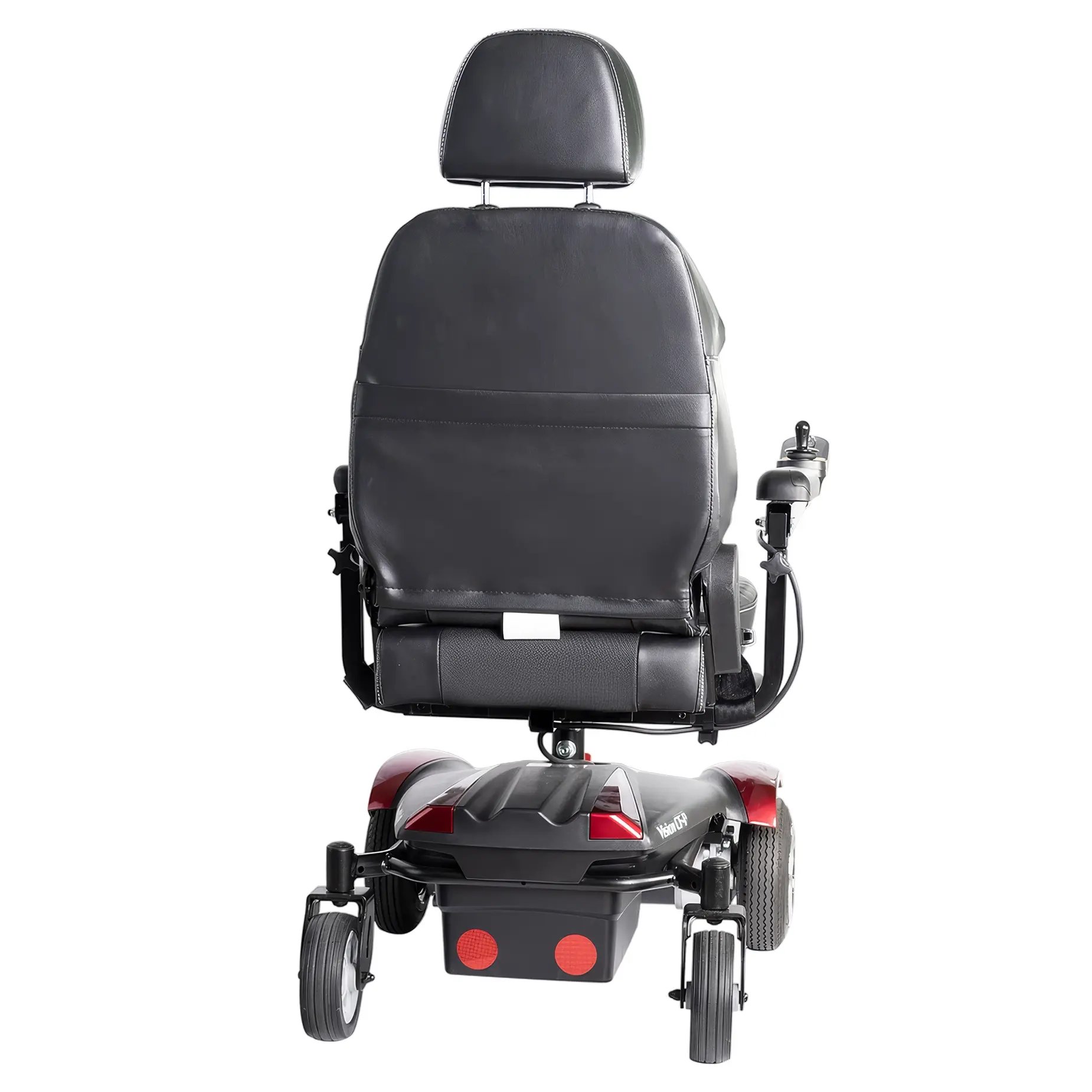

The Merits power wheelchair Vision CF back view.

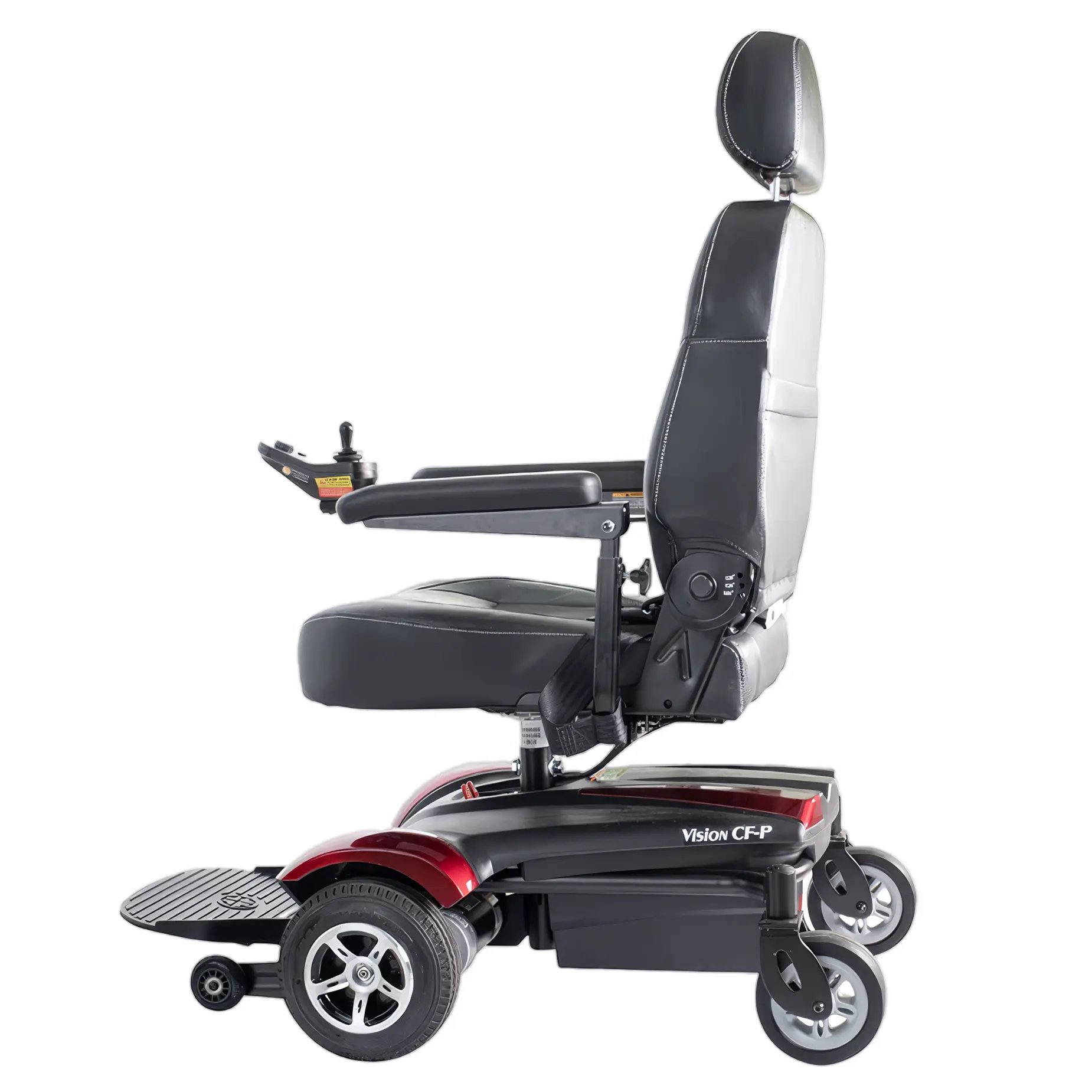

The Merits power wheelchair Vision CF left profile view.

Product Details

Designed for users seeking exceptional maneuverability in a lightweight package, the Vision CF combines true front-wheel drive performance with premium ergonomic seating and advanced electronic controls.

Adjustable seating dimensions, a compact footprint, and superior traction provide confidence across everyday environments, while the Dynamic LiNX controller and available seating options allow providers to customize the chair for individual mobility and clinical needs.

General Specifications
Weight Capacity: 300 lbs.
Drive Configuration: FWD
Turning Radius: 22"
Ground Clearance: 2"
Gradient (Incline): 6°
Range Per Charge: Up to 18 miles
Overall Length: 33.75"
Overall Width: 23"-27"
Product Weight: 154 lbs.



Seating Details
Seat Type: Captain or pan seat
Seat Width Options: 16", 18", or 20"
Seat Depth Options: 16"-20"
Seat-to-Floor Height: Captain: 20.5"-22.5"
Pan: 17.25"-19.25"
Backrest Height: 18"-20"



Compatible Accessories
Accessory Part Number
66" Seat Belt (Standard is 60”):  43700319
80" Seat Belt (Loop Style): 43701
Backpack - Medium 12" x 13" x 3”:
 B1117
Backpack - Deluxe 14” x 16” x 4”:
 B1121
Cane Holder: B6212
Crutch Holder: B6213
Cane & Crutch Holder: 34200010
Cup Holder: 46700060
Foldable Rear Basket - Medium:
 34200019
Foldable Rear Basket - Large:  34200006
Multi-Accessory Receiver Adaptor: J4M
Oxygen Tank Holder #2:  B6211
Power Wheelchair Cover - Large:  PWCC
Safety Flag:  F1100
Side Bag: 43701032
USB Charger:  61230167
Walker Holder #1:  34203010
Walker Holder #2:  B6214



Technical Details
Motor: DC 24V/130W
Controller: Dynamic LiNX 40A
Battery Size: 35Ah, 12V, U1
(2 required)
Off-Board Charger: 5A
Drive Wheels: 9” foam-filled
Casters: Front: 3" anti-tippers • Rear: 6" foam-filled



Coverage & Billing
Medicare Group: Group 1 & Group 2
Medicare Code: K0815/K0816/K0820/
K0821



Product Features

The Merits Vision CF provides precision steering. The Merits Vision CF provides precision steering.

Precision Steering

A true front-wheel drive platform with a 17-inch turning radius delivers exceptional maneuverability in tight spaces.

The Merits Vision CF provides superior traction. The Merits Vision CF provides superior traction.

Superior Traction

Large 9-inch knobby drive tires provide dependable traction across a variety of indoor and outdoor surfaces.

The Merits Vision CF features smart controls. The Merits Vision CF features smart controls.

Smart Controls

The Dynamic LiNX controller offers Bluetooth-enabled programming and streamlined diagnostics for simplified service.

The Merits Vision CF provides personalized seating. The Merits Vision CF provides personalized seating.

Personalized Seating

Ergonomic captain or pan seating with adjustable seat depth creates a comfortable, customized fit.
