Vision Sport

K0822/K0823

The Vision Sport is a compact mid-wheel drive power wheelchair designed for responsive handling, premium comfort, and dependable everyday performance. Featuring true mid-wheel maneuverability, independent suspension, ergonomic seating, and advanced Dynamic LiNX controls, it delivers a smooth, stable ride across a wide range of indoor and outdoor environments.

Available colors:

Color swatches for the Merits Health Vision Sport.

Find a Dealer

Download Flier

The Merits power wheelchair Vision Sport three-quarter view.

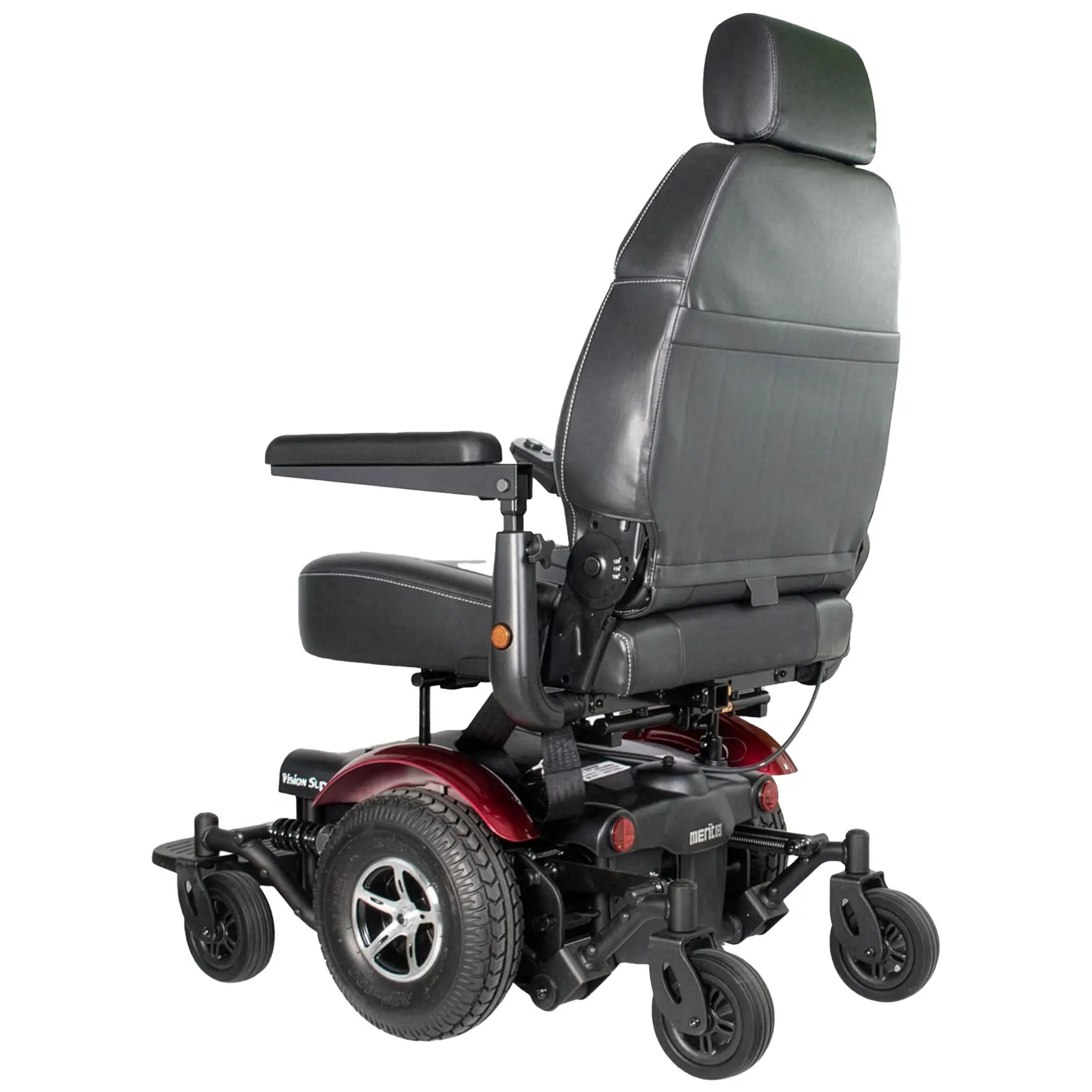

The Merits power wheelchair Vision Sport back three-quarter view.

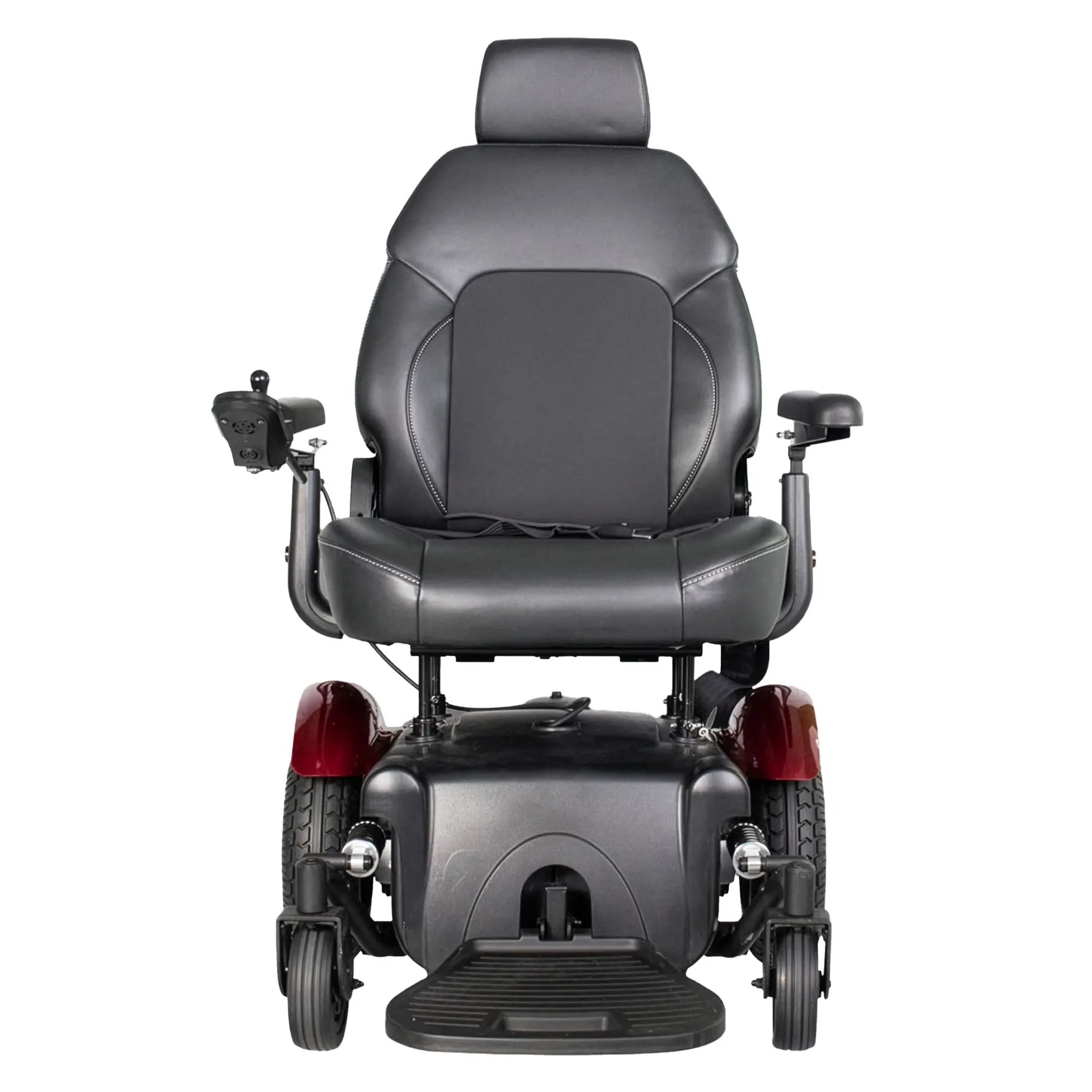

The Merits power wheelchair Vision Sport front view.

Product Details

Designed for users seeking agile mobility with premium comfort, the Vision Sport combines a true mid-wheel drive platform with independent suspension and customizable seating.

Its compact footprint delivers exceptional maneuverability, while ergonomic seating, adjustable seat dimensions, and advanced Dynamic LiNX electronics provide a comfortable, personalized ride.

Durable solid tires and practical accessory options make it a dependable solution for everyday mobility.

General Specifications

Weight Capacity:	300 lbs.
Drive Configuration:	MWD
Turning Radius:	19.25"
Ground Clearance:	1.75"
Gradient (Incline):	6°
Range Per Charge:	Up to 18 miles
Overall Length:	34"
Overall Width:	23"-29"
Product Weight:	184 lbs.

Seating Details

Seat Type:	Captain, pan, or rehab seating system
Seat Width Options:	16", 18", 20", or 22"
Seat Depth Options:	16"-20"
Seat-to-Floor Height:	Captain: 20.5"-24.25" Pan: 17.25"-21"
Backrest Height:	18"-20"

Compatible Accessories

Accessory	Part Number
66" Seat Belt (Standard is 60”):	43700319
80" Seat Belt (Loop Style):	43701
Backpack - Medium 12" x 13" x 3”:	B1117
Backpack - Deluxe 14” x 16” x 4”:	B1121
Cane Holder:	B6212
Cup Holder:	46700060
Cane & Crutch Holder:	34200010
Crutch Holder:	B6213
Cup Holder Mounting Bracket #1:	34103174
Foldable Rear Basket - Medium:	34200019
Foldable Rear Basket - Large:	34200006
Multi-Accessory Receiver Adaptor:	J4M
Oxygen Tank Holder #2:	B6211
Power Wheelchair Cover - Large:	PWCC
Safety Flag:	F1100
Side Bag:	43701032
Unoccupied Transit Tie Down Kit:	39900214
USB Charger:	61230167
Walker Holder #1:	34203010
Walker Holder #2:	B6214

Technical Details

Motor:	DC 24V/160W
Controller:	Dynamic LiNX 40A
Battery Size:	35Ah, 12V, U1 (2 required)
Off-Board Charger:	5A
Drive Wheels:	10” foam-filled
Casters:	Front: 6" solid Rear: 6" solid

Coverage & Billing

Medicare Group:	Group 2
Medicare Code:	K0822/K0823

Product Features

Superior Drive

A compact mid-wheel drive platform with a 20-inch turning radius provides exceptional maneuverability in tight spaces.

Independent Suspension

Robust independent suspension absorbs up to 250 pounds on the footplate without tipping for greater stability and comfort.

Ergonomic Seating

Premium semi-reclining captain or pan seating reclines up to 135° for personalized comfort and support.

Smart Controls

The Dynamic LiNX 40A controller enables convenient Bluetooth programming and streamlined diagnostics.
