The Merits power wheelchair Vision Super.

Vision Super with Lift

K0830/K0831

The Vision Super with Lift is a premium mid-wheel drive power wheelchair built for comfort, control, and everyday independence. With a 10" power elevating seat, tight 21" turning radius, customizable seating, advanced LiNX electronics, and a 400 lb. weight capacity, it delivers confident mobility in any environment.

Available colors:

Color swatches for the Merits Health Vision Super.

Find a Dealer

Download Flier

The Merits power wheelchair Vision Super three-quarter view.

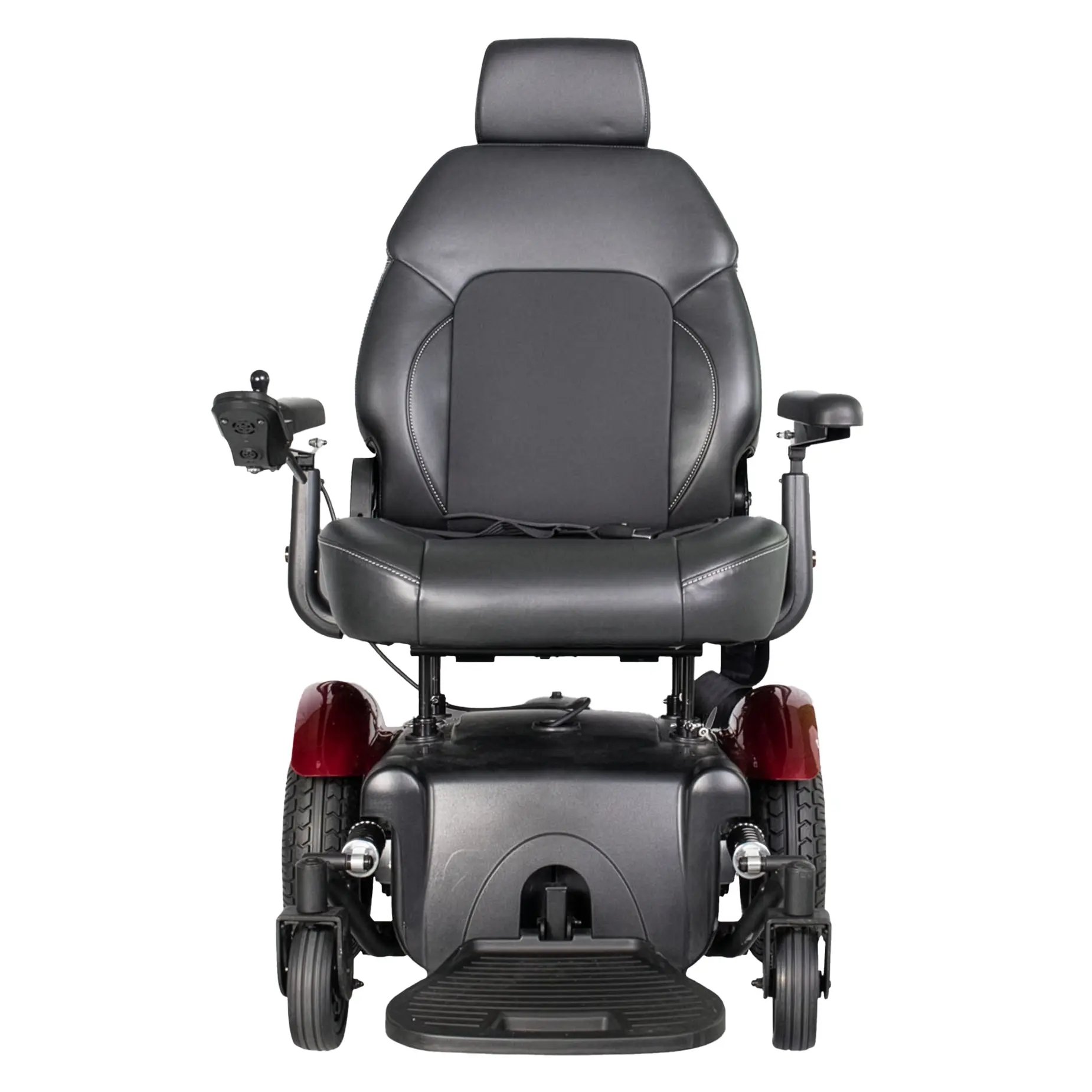

The Merits power wheelchair Vision Super front view.

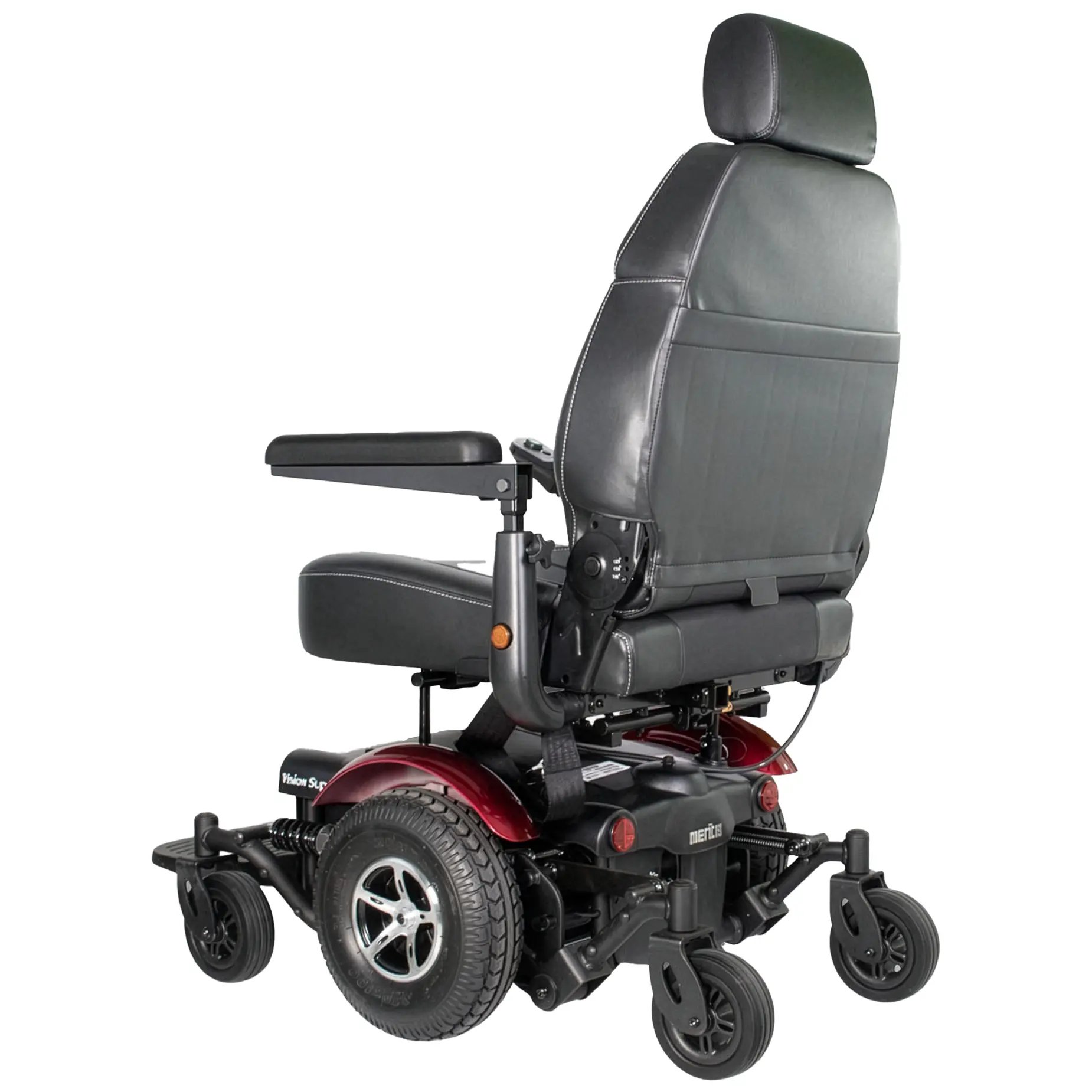

The Merits power wheelchair Vision Super back three-quarter view.

Product Details

Designed for exceptional everyday performance, the Vision Super with Lift combines true mid-wheel drive maneuverability with a 10" power elevating seat for greater accessibility and independence.

Its ergonomic, customizable seating system and advanced LiNX electronics with Bluetooth diagnostics provide comfort and intelligent performance, while the tight 21" turning radius and 400 lb. weight capacity make it well suited for navigating both indoor spaces and community environments with confidence.

Practical accessories and Bluetooth-enabled electronics complete a highly capable mobility solution.

General Specifications

Weight Capacity:	400 lbs.
Drive Configuration:	MWD
Turning Radius:	20.5"
Ground Clearance:	2"
Gradient (Incline):	8°
Range Per Charge:	Up to 20 miles
Overall Length:	35.5"
Overall Width:	27"-31"
Product Weight:	273 lbs.

Seating Details

Seat Type:	Captain or pan seat
Seat Width Options:	20", 22", or 24"
Seat Depth Options:	18"-22"
Seat-to-Floor Height:	Captain: 23.5" - 24.5" + 10" lift Pan: 20.25"-21.25" + 10" lift
Backrest Height:	20"-22"
Elevating Seat:	10" scissor lift

Compatible Accessories

Accessory	Part Number
66" Seat Belt (Standard is 60”):	43700319
80" Seat Belt (Loop Style):	43701
Backpack - Medium 12" x 13" x 3”:	B1117
Backpack - Deluxe 14” x 16” x 4”:	B1121
Cane Holder:	B6212
Cup Holder:	46700060
Cane & Crutch Holder:	34200010
Crutch Holder:	B6213
Cup Holder Mounting Bracket #1:	34103174
Foldable Rear Basket - Medium:	34200019
Foldable Rear Basket - Large:	34200006
Multi-Accessory Receiver Adaptor:	J4M
Oxygen Tank Holder #2:	B6211
Power Wheelchair Cover - Large:	PWCC
Safety Flag:	F1100
Side Bag:	43701032
Unoccupied Transit Tie Down Kit:	39900214
USB Charger:	61230167
Walker Holder #1:	34203010
Walker Holder #2:	B6214

Technical Details

Motor:	DC 24V/300W
Controller:	PG VR2 60A
Battery Size:	55Ah, 12V, 22NF (2 required)
Off-Board Charger:	5A
Drive Wheels:	12” flat-free
Casters:	Front: 6” solid Rear: 6” solid

Coverage & Billing

Medicare Group:	Group 2
Medicare Code:	K0830/K0831

Product Features

Super Support

A 450-pound weight capacity (400 pounds with lift) delivers dependable support for higher-acuity mobility needs.

Independent Suspension

Heavy-duty independent suspension absorbs up to 350 pounds on the footplate without tipping forward for exceptional stability.

Advanced Positioning

An available 10-inch scissor power seat lift, customizable seating, and ergonomic reclining seat provide personalized positioning.

Powerful Performance

Dual 300W motors and Dynamic Shark/LiNX controls deliver responsive performance, Bluetooth diagnostics, and dependable everyday mobility.

Find a Dealer Near You

Merits products are available exclusively through our network of authorized dealers and retailers. Find the dealer closest to you and take the next step toward greater mobility.
