Atlantis
K0826/K0827

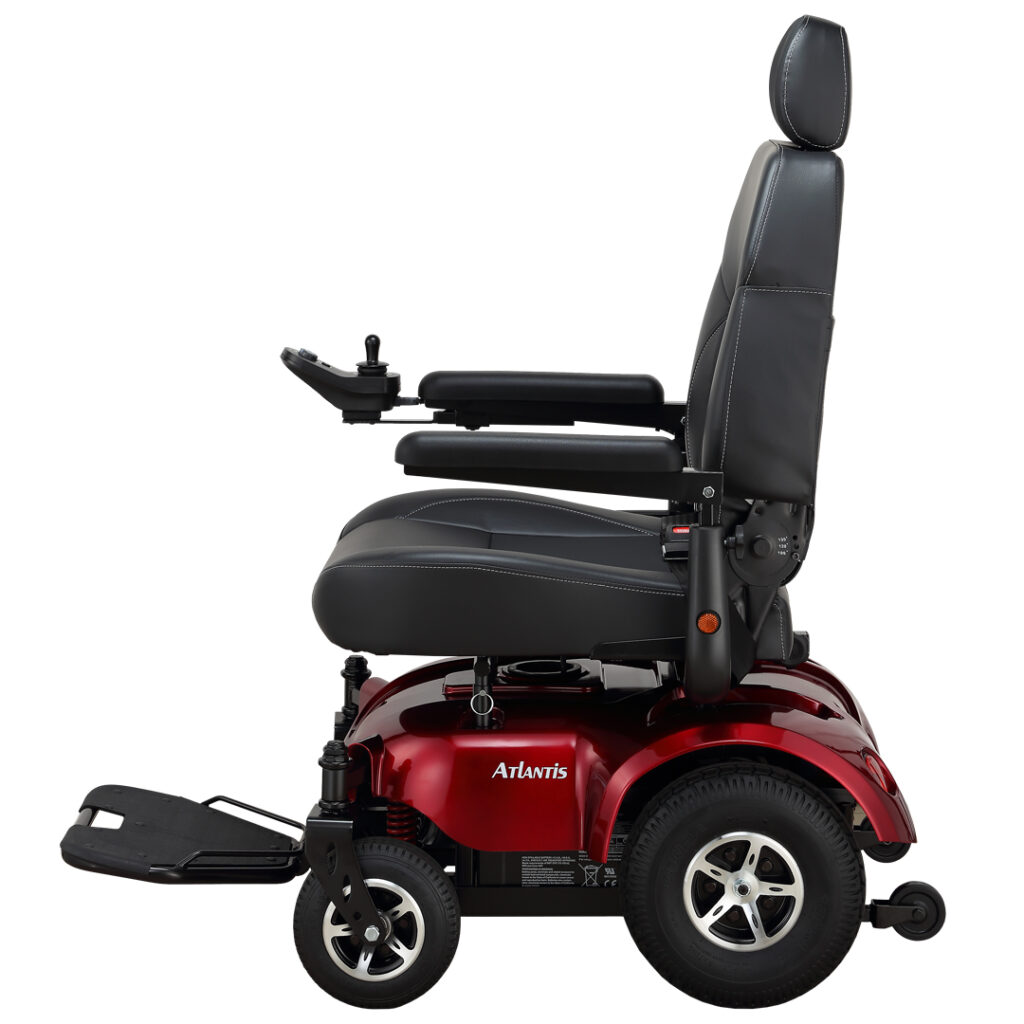

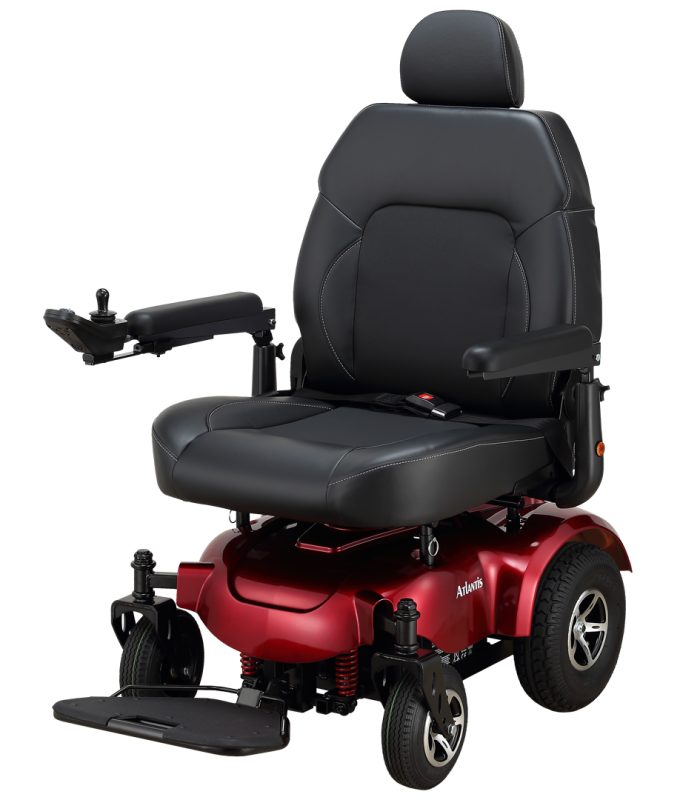

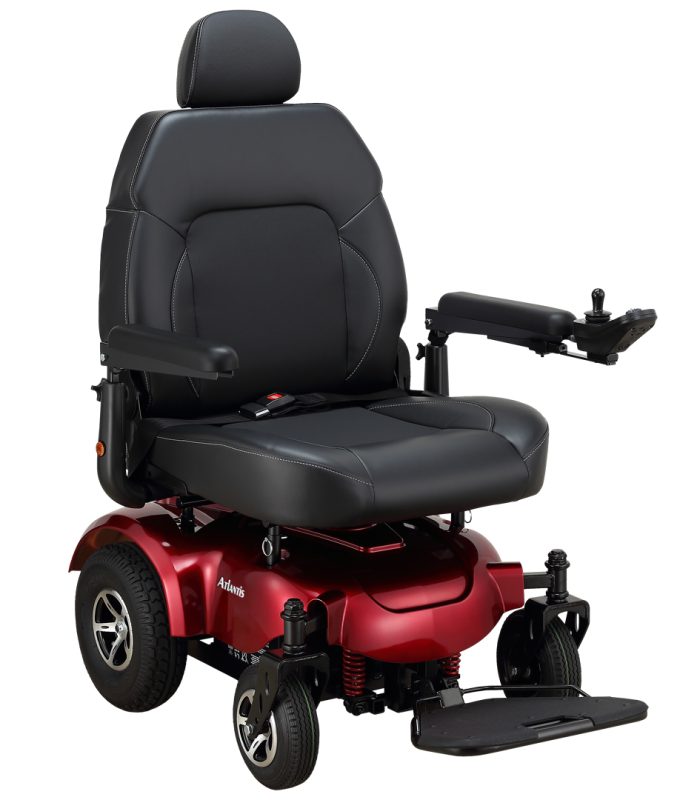

The Atlantis Heavy Duty Power Chair by Merits Health gives you the durability and comfort of a standard power chair with the added benefits of heavy-duty construction and design. With a 31.5-inch turning radius, 12-inch drive wheels, and a high-powered motor, the Atlantis Heavy Duty Power Chair will get you where you need to go with ease.
Color Options
Resource Materials
Atlantis Specifications
| Product # | P710 |
| Weight Capacity | 600 lbs |
| Drivetrain | RWD |
| Seat Type | Captain or Pan |
| Seat Width | 24" |
| Seat Depth | 22” |
| Backrest Height | 24" |
| Seat-to-Floor Height | 23" - 24" |
| Elevating Seat | n/a |
| Overall Length | 44" |
| Overall Width | 27" |
| Overall Height | 50" |
| Turning Radius | 31.5" |
| Ground Clearance | 3" |
| Total Weight | 304 lbs |
| Wt of Heaviest Pc | 167 lbs |
| Max Speed | 5 mph |
| Per Charge Range | up to 32 miles |
| Motor | DC 24V, 300W |
| Controller | P&G VR2 60A |
| Battery Size (2) | 12V/Group 24 (75AH) |
| Charger | 6A off-board |
| Gradient | 10 ° |
| Front Wheels | 9" pneumatic |
| Drive Wheels | 12" pneumatic |
| Rear Wheels | 3" anti-tippers |
| Group | Group: 2 Very Heavy |
| HCPCS Code | K0826/K0827 |
| Standard Colors | Red or Blue |
Atlantis Specifications
| Product # | P710 |
| Weight Capacity | 600 lbs |
| Drivetrain | RWD |
| Seat Type | Captain or Pan |
| Seat Width | 24" |
| Seat Depth | 22” |
| Backrest Height | 24" |
| Seat-to-Floor Height | 23" - 24" |
| Elevating Seat | n/a |
| Overall Length | 44" |
| Overall Width | 27" |
| Overall Height | 50" |
| Turning Radius | 31.5" |
| Ground Clearance | 3" |
| Total Weight | 304 lbs |
| Wt of Heaviest Pc | 167 lbs |
| Max Speed | 5 mph |
| Per Charge Range | up to 32 miles |
| Motor | DC 24V, 300W |
| Controller | P&G VR2 60A |
| Battery Size (2) | 12V/Group 24 (75AH) |
| Charger | 6A off-board |
| Gradient | 10 ° |
| Front Wheels | 9" pneumatic |
| Drive Wheels | 12" pneumatic |
| Rear Wheels | 3" anti-tippers |
| Group | Group: 2 Very Heavy |
| HCPCS Code | K0826/K0827 |
| Standard Colors | Red or Blue |
Features
- Weight Capacity 600 lbs.
- Heavy-duty power wheelchair with a unique and prominent design
- Four seat posts provide a more stable and durable structure for the frame
- Available with a pan or captain seat in 24 or 26-inch width
- Extra-wide seat and extra-high back provide great comfort for bariatric users
- Super high power in-line motors help riders negotiate 10° uphill ramps easily
Options
Swing-away joystick
USB charger
Elevating leg rests
Oxygen tank holder
Cane/Crutch holder
Walker holder
Foldable rear basket
Canopy
Height adjustable arms
Weather cover
